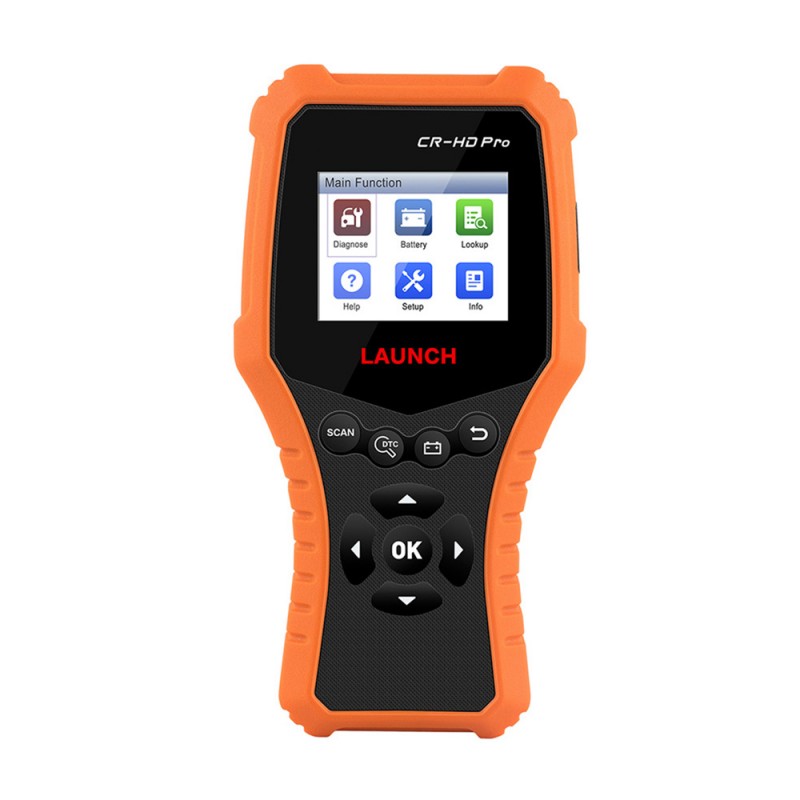

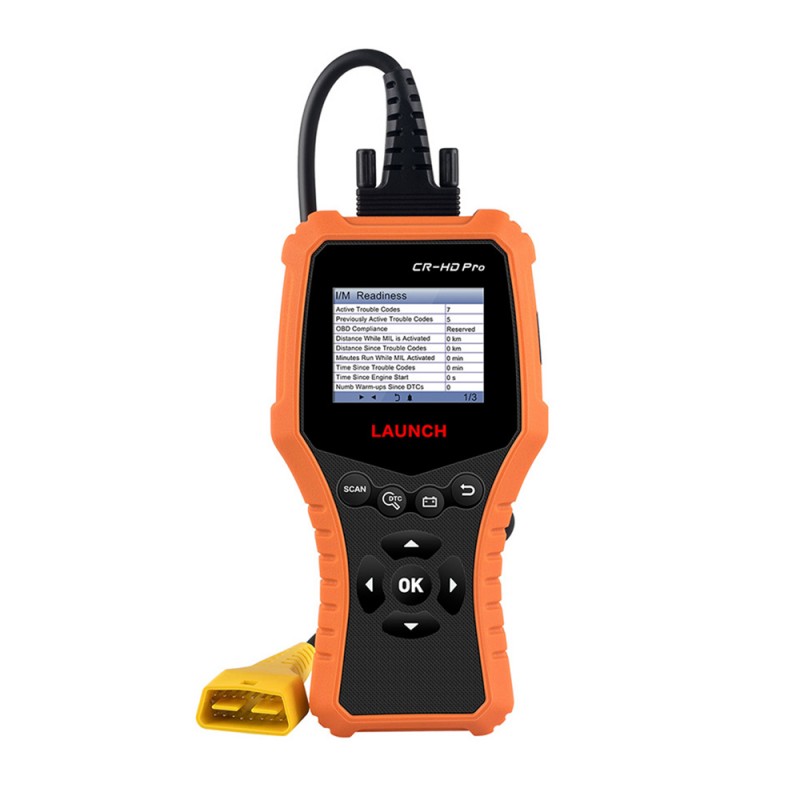

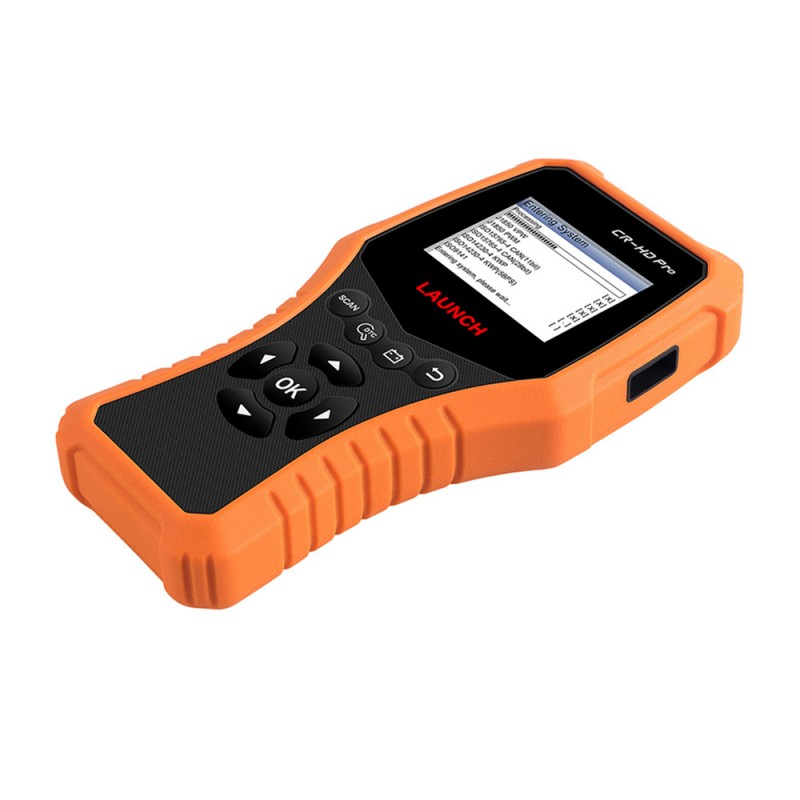

LAUNCH CR-HD Pro Car and Truck OBD2 HOBD Code Reader Scanner
$209.00
- Brand: Launch Creader
- Product Code: SC407
- Availability: Out of Stock
- Weight: 0.60kg
- Views: 6599 times
Looking for help? or Get More Discount
Please contact Whatsapp: WhatsApp:+13399708796
Please contact Whatsapp: WhatsApp:+13399708796
LAUNCH CR-HD Pro Car and Truck OBD2/ HOBD Code Reader Scanner
Support System: Engine system, transmission system, instrument panel system etc.
Language: English, French, Spanish, German, Russian, Portuguese
Functions for 24V Truck:
Functions for 24V Truck:
Support System: Engine system, transmission system, instrument panel system etc.
Function: Read trouble codes, clear trouble codes and read data stream information
Support protocols: J1939,J1708,SAE J1979 (OBDII)
Functions For 12V Car:
Read fault, Delete Fault code, Live Data, Read Vehicle information,
O2 Sensor Test, EVAP System Test, On-board monitor Test,
DTC Code lookup, IML Fault indicator, View Freeze frame, I/M Readiness

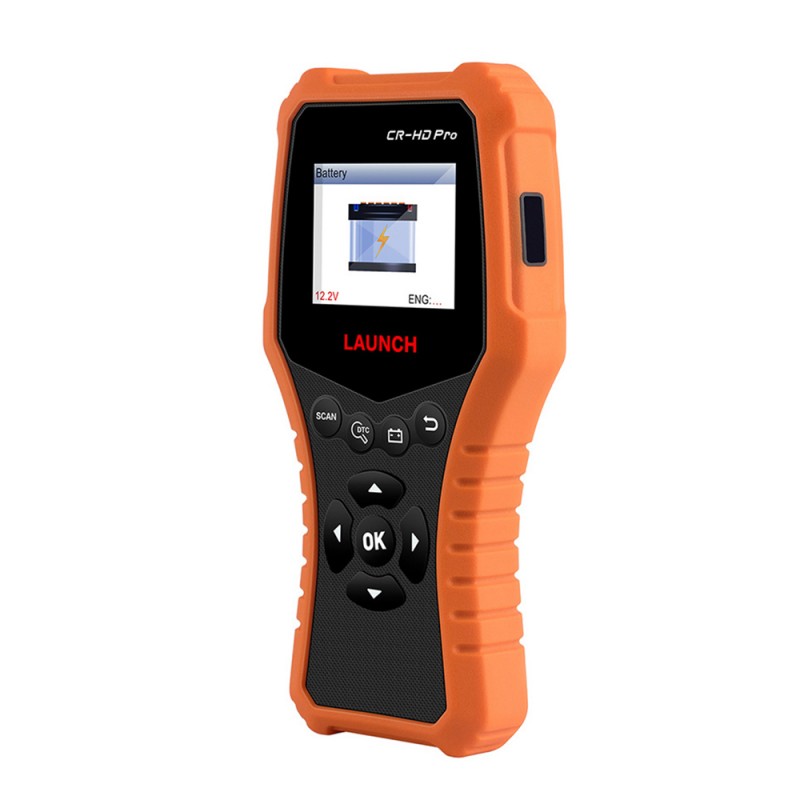

Battery: Reads the vehiclersquo battery voltage.
Lookup: Retrieves the desired diagnostic, trouble code (DTC) from the DTC library.
Help: Lets you have a general knowledge of the OBD II, HD OBD and I/M readiness.
Info: Includes the tool information, including software & hardware version, and serial number etc.
Support OBD2 Protocols Cars:
1.SAE J1850 PWM (41.6Kbaud)
2.SAE J1850 VPW (10.4Kbaud)
3.ISO9141-2 (5 baud init,10.4Kbaud)
4.ISO14230-4 KWP (5 baud init,10.4 Kbaud)
5.ISO14230-4 KWP (fast init,10.4 Kbaud)
6.ISO15765-4 CAN (11bit ID,500 Kbaud)
7.ISO15765-4 CAN (29bit ID,500 Kbaud)
8.ISO15765-4 CAN (11bit ID,250 Kbaud)
9.ISO15765-4 CAN (29bit ID,250 Kbaud)
LAUNCH CR-HD Pro Car List:
American Car: Need standard OBD2 protocols from 2000 to now
European Car: Need standard OBD2 protocols from 2003 to now
Japanese/Korean Car: Need standard OBD2 protocols from 2006 to now
Chinese Car: Need standard OBD2 protocols from 2009 to now

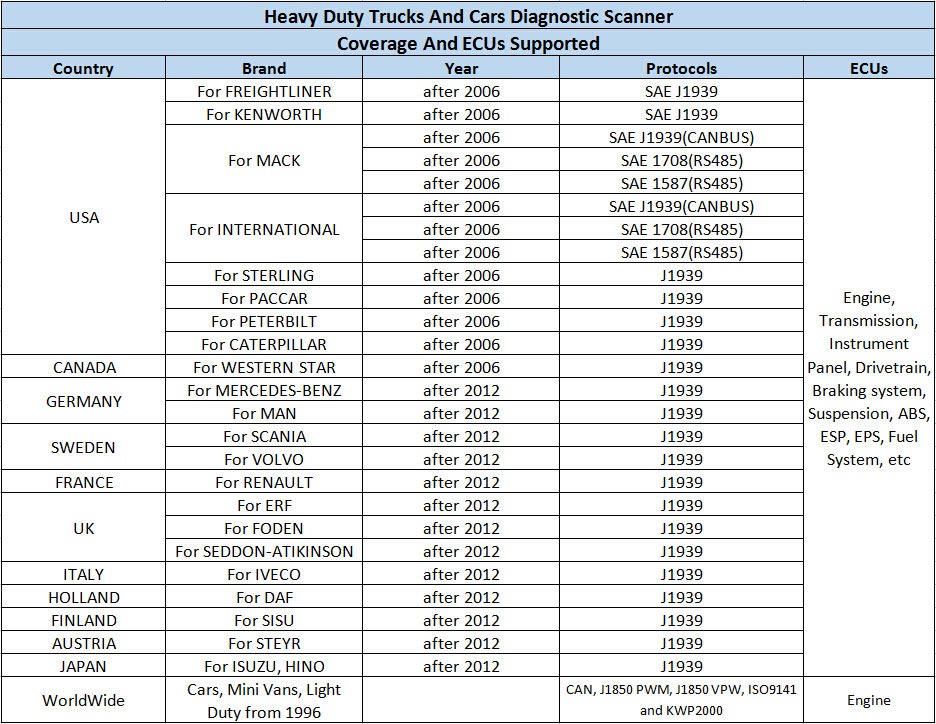

LAUNCH CR-HD Pro Truck List:
LAUNCH CR-HD Pro Truck List:
How to Update LAUNCH CR-HD Pro?
LAUNCH CR-HD Pro Updated via data cable. Make sure the PC has an Internet connection.
LAUNCH CR-HD Pro Updated via data cable. Make sure the PC has an Internet connection.
1. Download the update tool to the computer.
2. Decompress and install it on your computer (compatible with Windows XP, Windows 7, Windows8 & Windows 10).

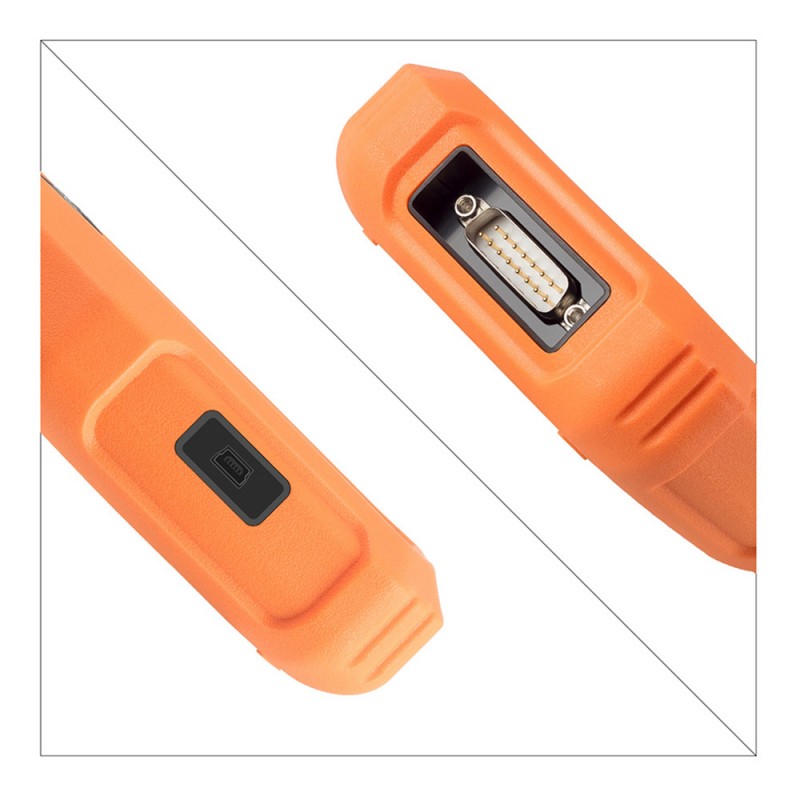

3. After installation, connect one end of the data cable to the USB port of PC, and the other end to the tool.
Note: If the tool is properly connected to the pc, the no DTC led illuminates green and the DTC led goes out. Otherwise, the red led illuminates and the green led lights off.
4. Launch the update tool on your pc, the system starts reading the tool. Once it obtains the tool information, it will directly navigate to the update center.
5. The update process is complete and your tool is now ready for use.
Note: To enjoy more and functions, you are suggested to check for updates on a frequent basis and keep synchronized with the latest available software.

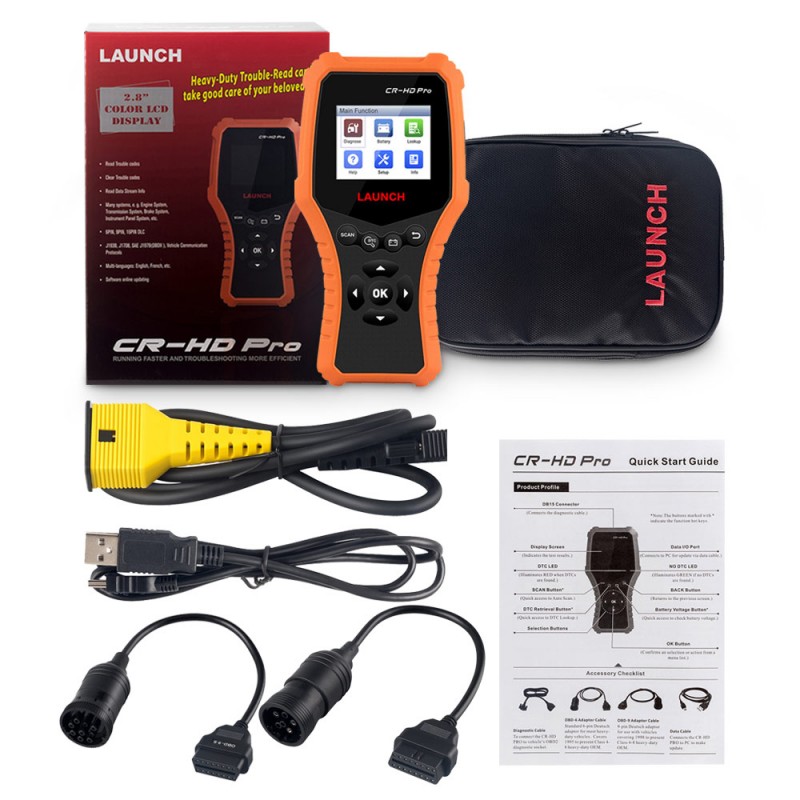

Package includes:
1pc x Diagnostic Cable
1pc x OBD-6 Adaptor Cable
1pc x OBD-9 Adaptor Cable
1pc x Data Cable
