Launch CNC-603C 6 Cylinder Injector Cleaner & Tester Fuel Injection Systems

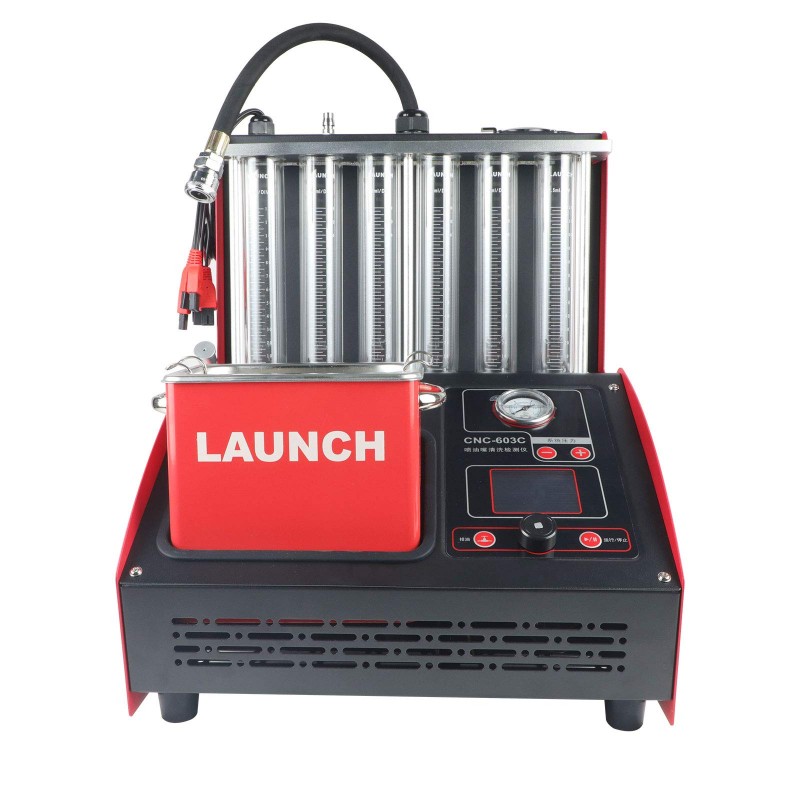

- CNC-603 Injector Cleaner & Tester: a desk 6-cylinder injector cleaner and tester.
- Uniformity/Sprayability test: to detect the uniformity of the fuel injection quantity of each injector and monitor the spray status of injectors thoroughly and carefully by using the backlight, and to backflush injectors.
- Leakage test: to test the leakage and dribbling conditions of injectors under system pressure.
- Injecting flow test: to detect the amount of fuel injected normally by injectors in 15 seconds.
- Auto. test: under specific working conditions and parameters, the precise simulation of test of injectors under various working
1. Free removal cleaning
2. Uniformity / Sprayability Test
3. Automatic ultrasonic cleaning
4. Exquisite appearance
5. Seal test
6. Injection flow test 1. Functions and features
The main function:
Uniformity/Atomization Detection Function--Detecting the uniformity of the fuel injection amount of each injector, and at the same time, the background lamp can be used to thoroughly observe the spray atomization of the injector, and the injector can be backwashed.
Sealing inspection function - can detect the sealing and dripping of the injector under system pressure
Fuel injection detection function - can detect the fuel injection amount of the injector under the condition of 15 seconds of normal spray
Automatic cleaning detection function - real simulation under various working conditions under various working conditions
Ultrasonic cleaning - ultrasonic cleaning of multiple injectors at the same time, thoroughly cleaning the carbon deposits on the injectors
Language selection function - the system comes with multiple languages, you can choose the appropriate language according to your needs
Version information--Query current device software version information
Strong ultrasonic cleaning technology, strong cleaning ability
Adopting pressure regulating control technology, the oil pressure is stable, the adjustable range is wide, it can adapt to the automobile equipped with various gasoline injection systems, and the automation of the injector cleaning detection process can be realized.
Using microcomputer automatic control and digital detection technology, it can automatically control the cleaning and detection process, and monitor the main parameters in real time.
The oil drain automatic control technology is adopted, and the automatic oil discharge can be realized through the program in some test items. In the running or stop state, it can be operated or (stopped) by the (oil drain) button on the operation panel.
2. Working environment and technical indicators
Power supply: AC220V 50Hz/60Hz 1.5Amax
Machine power: 300W
Ultrasonic cleaning power: 100W
Analog detection speed range: 10-9990rpm step 10rpm
Timing range: 1-9999s
Pulse width range: 0.5-25ms step 0.1ms
Operating volume: 2000ml
Packing size: 438mm*438mm*528mm
Host size: 355mm * 350mm * 356mm
