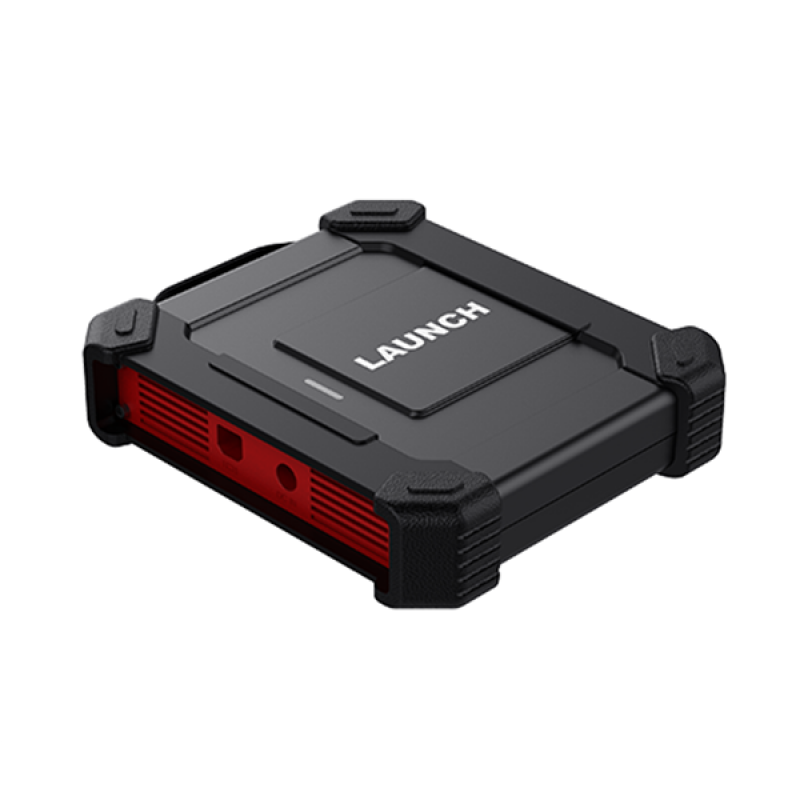

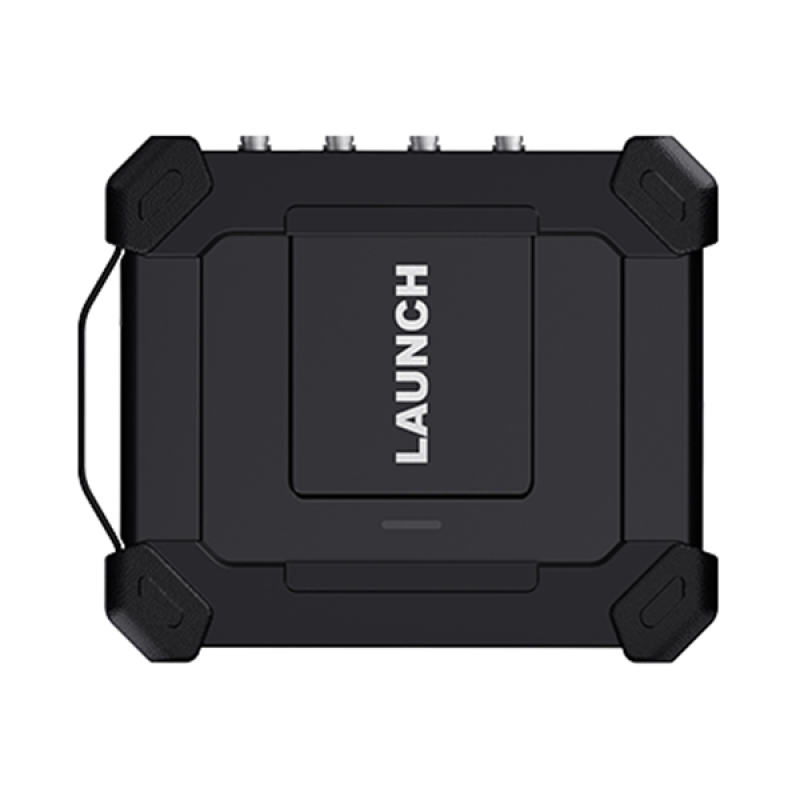

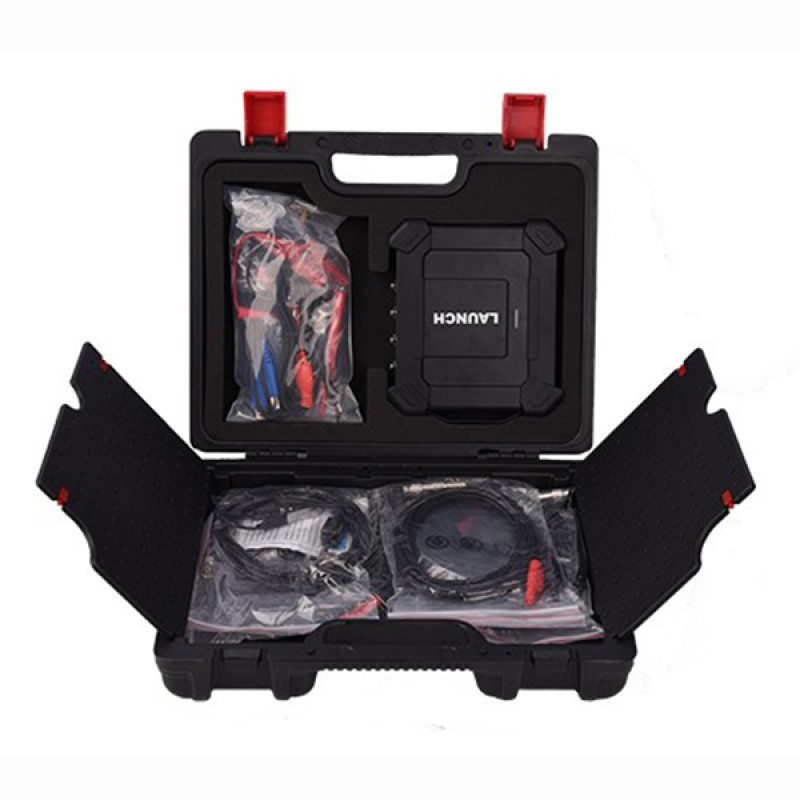

LAUNCH O2-1 Scope Box Oscilloscope (4 Channels) Compatible With The X-431 PAD VII, PAD V, PAD III

Free Delivery


    Looking for help? or Get More Discount
    Please contact Whatsapp: WhatsApp:+13399708796
  • Product Code: LX021
  • Availability: In Stock
  • Weight: 4kg
  • Views: 7235 times

Launch X431 O2-1 Scope Box Car Oscilloscope Works With Launch Diagnostic Tool

Featuring a new design and upgraded hardware, the LAUNCH O2-1 Scope Box is a versatile easy to use module that detects high level faults on various electrical components, such as sensors, actuators and circuits. By integrating with the X-431 series scan tools via O2-1 application, the O2-1 delivers accurate and conclusive diagnostic faults that enable the shop and technician to enlarge its scan tool's functionality.


  • Features the ability to record and playback high-resolution waveform data for future analysis. One key enable function allows the user to capture a particular waveform which makes the process 70% more dfficient as compared to other scopes.

  • Access to 23 variants of automatic measurements that are displayed on one screen for an easy switch.

  • Ability to input names and characters directly by clicking on the virtual keyboard, this operation streamlines the process and contributes to 90% efficiency.

  • Buffer memory up to 50M.

  • Use the zoom in/out feature to review precise details Customizable personal system settings that can be saved as configuration files for viewing

  • The self-calibration function allows optimization of the oscilloscope signal path for maximum measurement accuracy.

  • Magnifies waveform math operations, such as addition, subtraction, multiplication and FFT function for high level waveform analysis.

  • Multiple automotive tests that include circuits, sensors, actuators, ignition tests and more.

  • Multi language user interface.

  • USB Sync Data Transfer to external devices such as laptop, tablet, etc....






    Rising time

    ≤3.5ns (typical)



    Input impedance

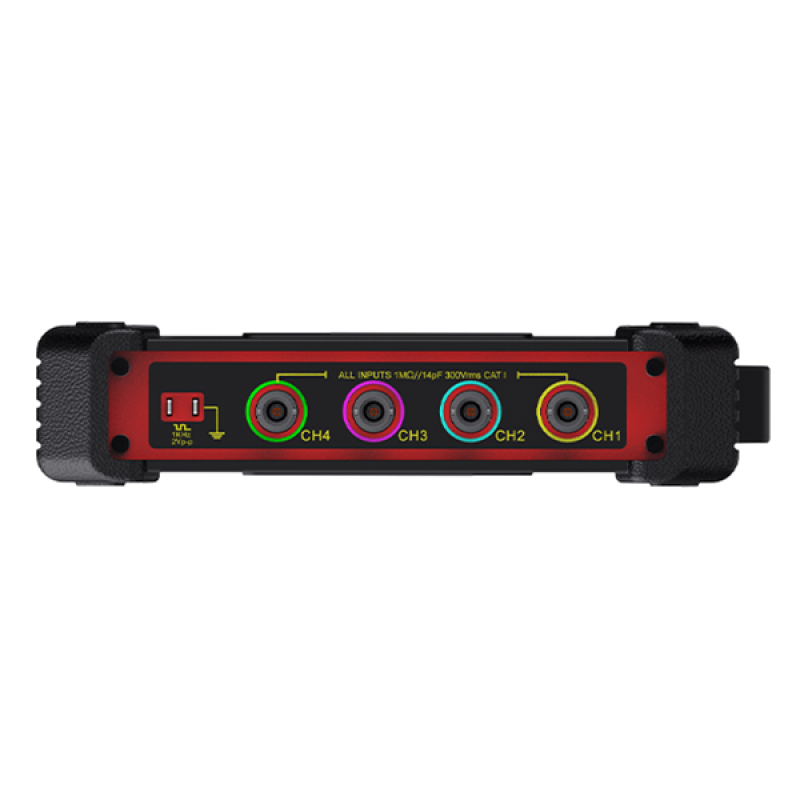

    Input type

    Single-ended, BNC connector

    Input coupling

    DC, AC

    Overload protection

    ±200V on single input

    Timebase ranges

    50ns~1ks (1 channel), 100ns~1ks (2 channels), 200ns~1ks (4 channels)

    Vertical resolution


    Buffer memory

    50M (for 4 channels)

    Power interface

    USB port, DC IN port

    Data exchange via


    Trigger mode

    Normal, Auto and Single SEQ

    Advanced triggers

    Edge, Pulse width
