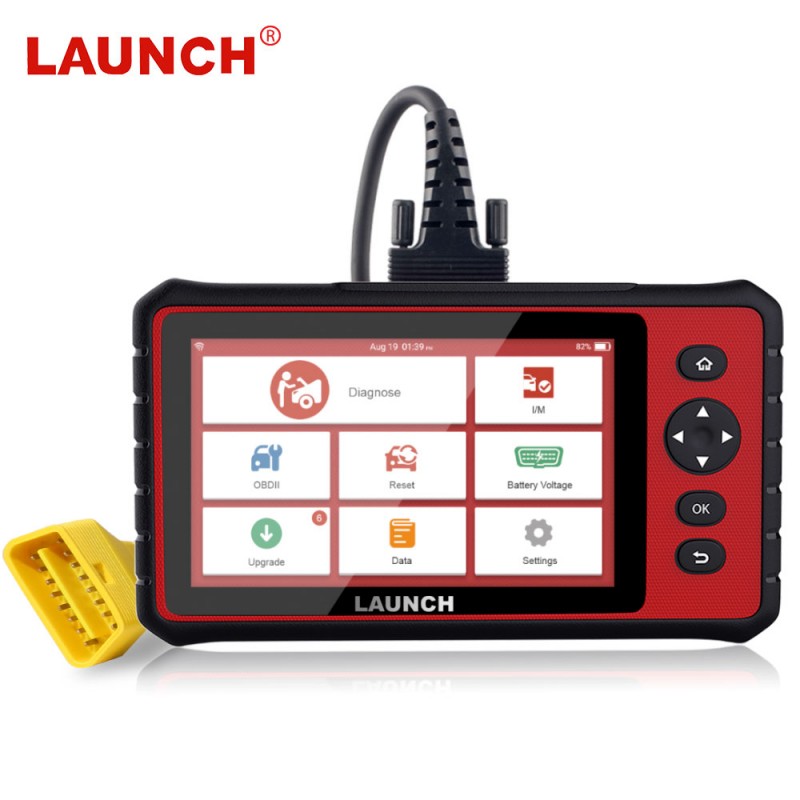

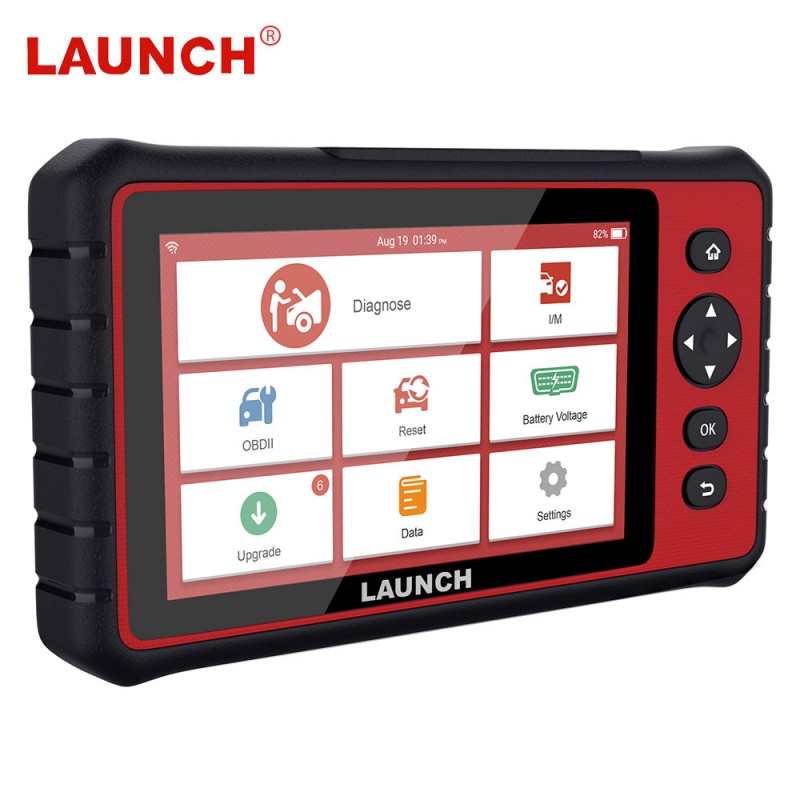

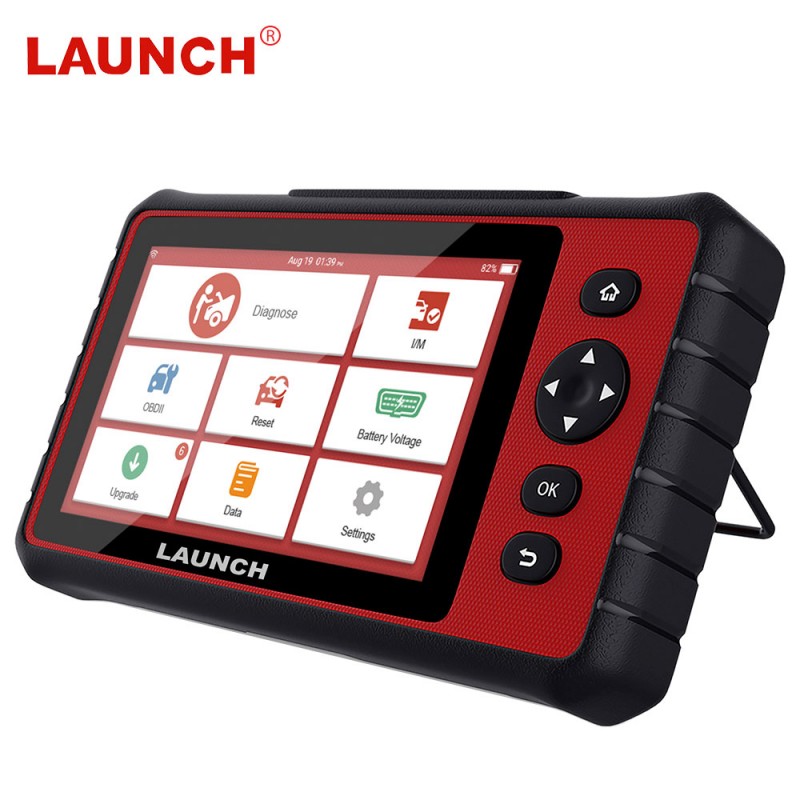

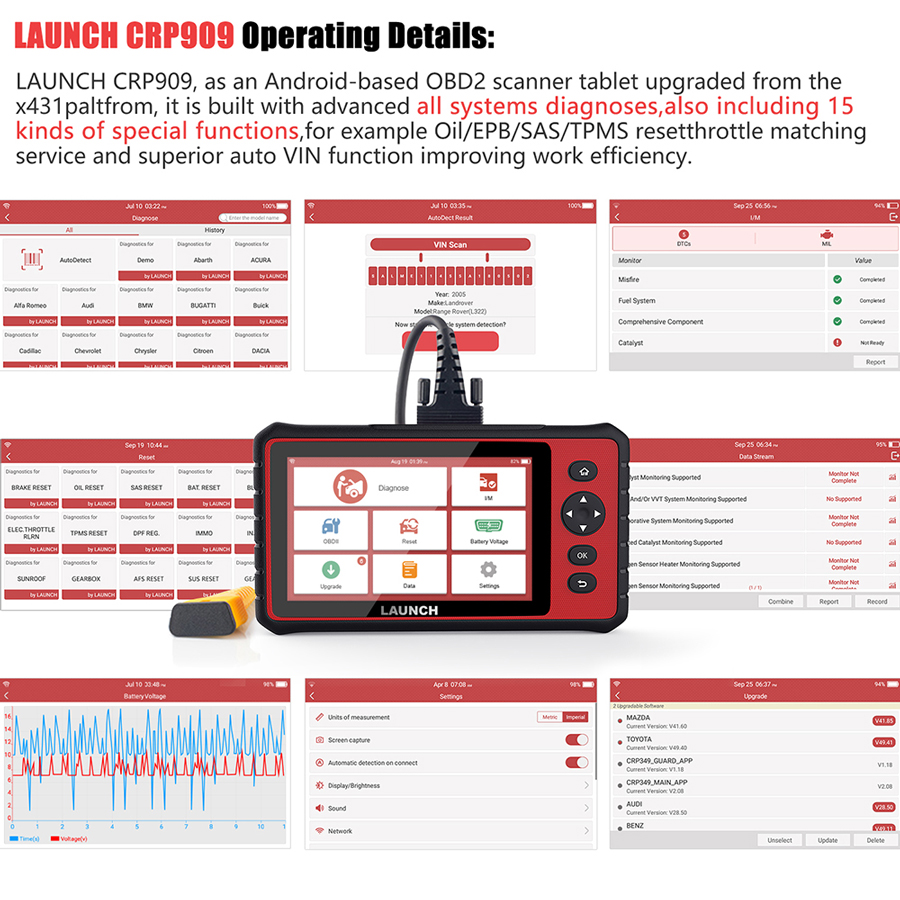

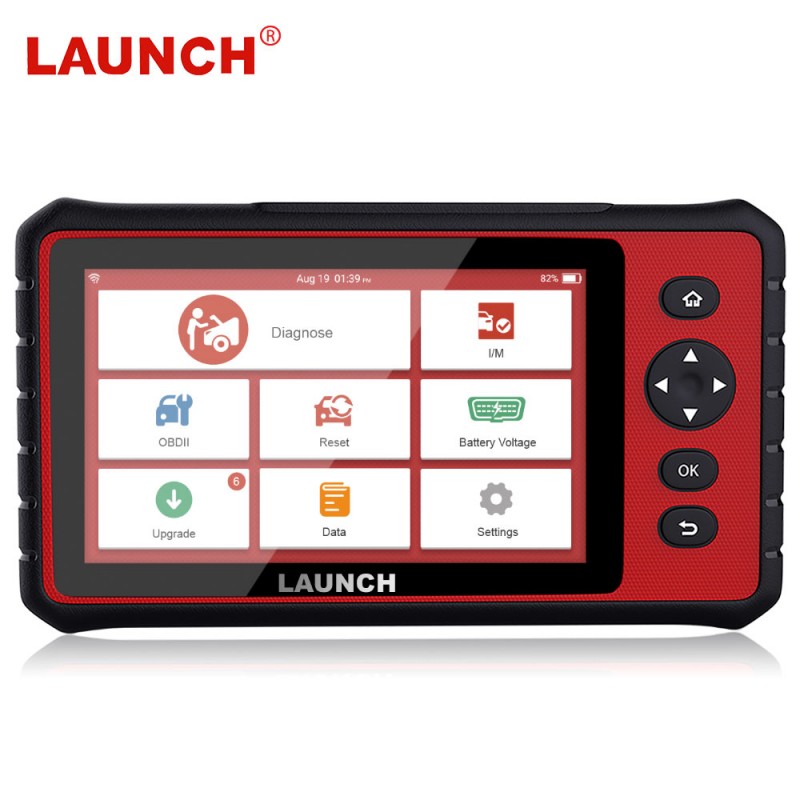

LAUNCH X431 CRP909 All System Auto OBDII Diagnostic Scanner with 15 Special Functions
Manual All Systems Diagnosis: If Auto-Detect failure occurs, manual diagnosis is also available. Diagnosis functions include: Version Information, Read DTCs, Clear DTCs and Read Data Stream (supports 3 display modes: Value, Graph and Merged).
Smart(Auto-Detect) Diagnosis: Once the tool and the vehicle are properly connected, the system starts auto-detect process. Once the whole process is successfully finished, a diagnostic report will be automatically generated and sent to your email box (if bound).

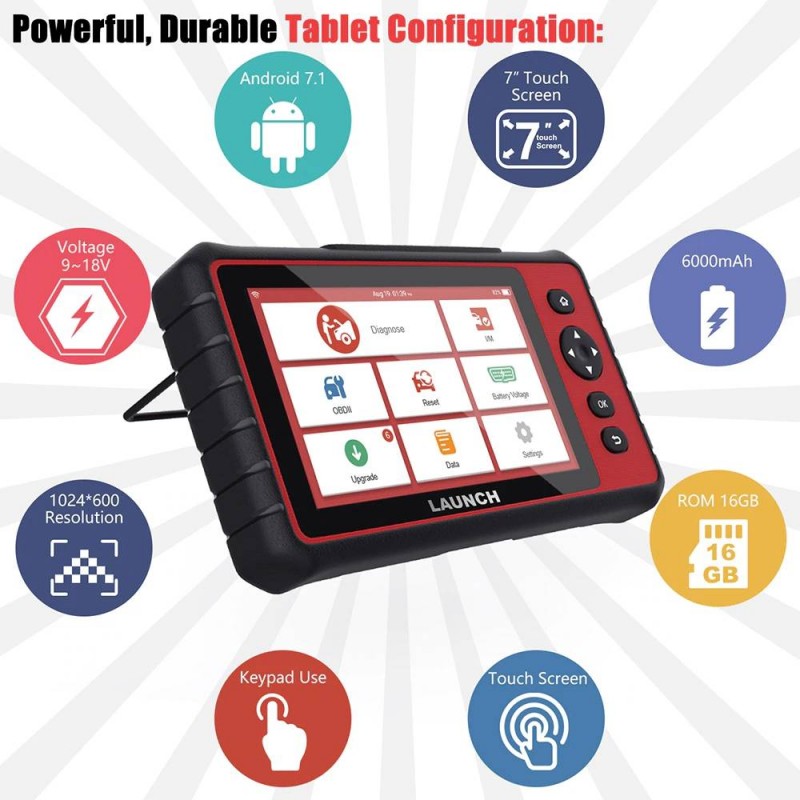

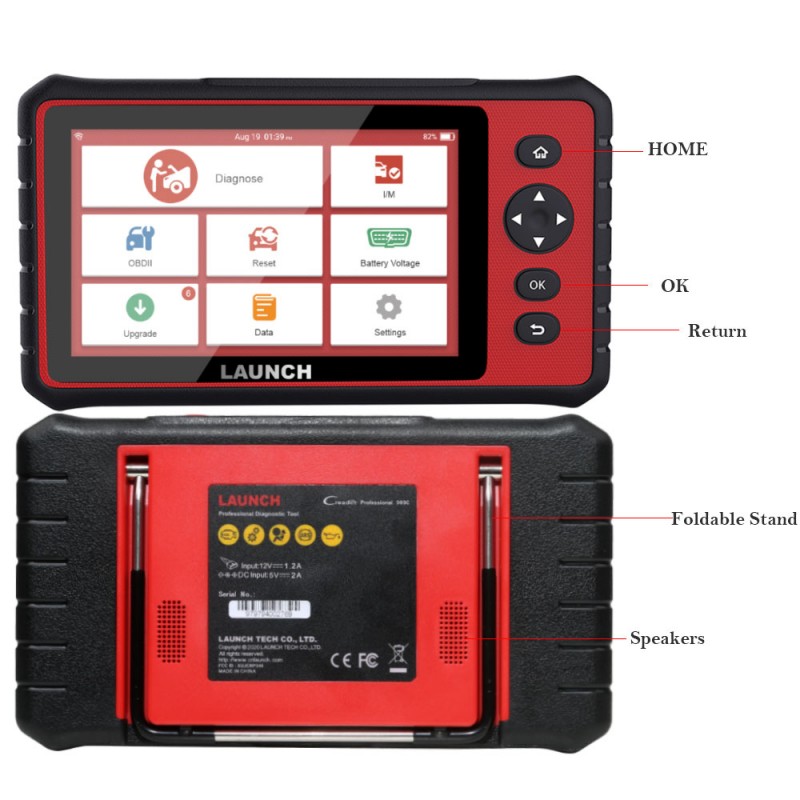

One-click Update: 7inch high configuration Android touch tablet, Let you update your diagnostic software and APK via wifi.

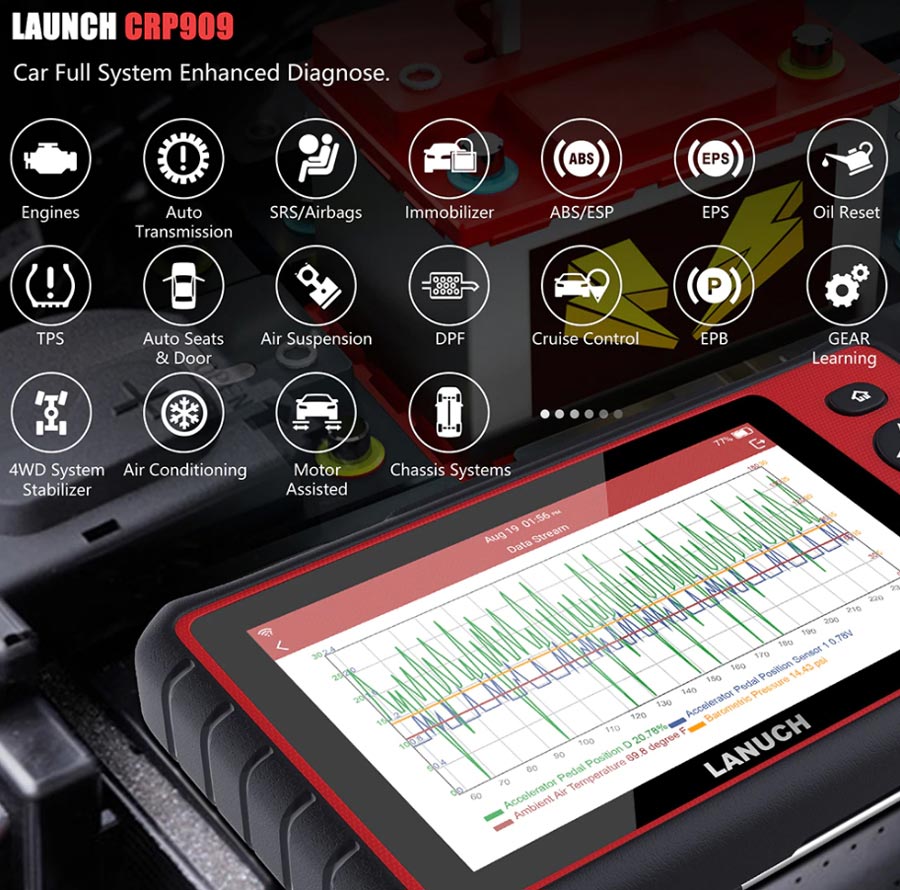

LAUNCH X431 CRP909 All Systems Diagnoses All OBD-II functions
Engines Auto Transmission Airbags Immobilizer ABS ESP system Cruise Control system Gateway Body Systems Steering system TPMS system Rain Sensors 4WD System Stabilizer Intelligent Parking Assist Audio Radio Systems Air Conditioning Central Locking Electric Windows Heated Rear Window Xenon Headlights Wash Wipe Fuel Burning Heater Seat & Door Motor system Electronic Throttle system Electronic Spark System ......
LAUNCH X431 CRP909 15 Special Reset Function
Frequently used maintenance and reset items can be done. It includes Oil Reset Service, Electronic Parking Brake Reset, Steering Angle Calibration, ABS Bleeding, TPMS (Tire Pressure Monitor System) Reset, Gear Learning, IMMO Service, Injector Coding, Battery Maintenance System, Diesel Particulate Filter (DPF) Regeneration, Electronic Throttle Position Reset, Gearbox Matching, AFS (Adaptive Front-lighting System) Reset, Sunroof Initialization and Suspension Calibration.
1.Oil Lamp Reset Service :
allows you to perform reset for a new calculation of Engine Oil Life system once changed the oil.
Helps maintain the electronic braking system safely and effectively, deactivating and activating the brake control system, assisting with brake fluid control, opening and closing brake pads, and setting brakes after disc or pad replacement, etc.
3.BAT battery service :
allows the scan tool to evaluate the battery charge state, monitor the close-circuit current, register the battery replacement, and activate the rest state of the vehicle.
4.DPF service :
specially works for Diesel Particulate Filter system with DPF regeneration, DPF component replacement teach-in and DPF teach-in after replacing the engine control unit.
helps clear the fault steering angle sensor memories and plays an important role in the steering angle sensor calibration.
6.TPMS service :
makes sense in displaying sensor IDs from the vehicle's ECU, inputting TPMS sensor replacement IDs and testing sensors.
7.IMMO Key Programming:
the unique car key programming and read pin code function, it is mainly used to disable the lost vehicle keys and program a new replacement key fob.
8.ABS Bleeding :
ABS brake bleeding to get a firm brake pad after air exhaustion after repair ABS pump system
The sunroof memory generally needs to be reset when the vehicle’s battery is replaced or the car dies
Try reset electronic suspension air ride with the massage system close all doors koeo flip through message system go to suspension reset or on off
Procedure Reset Transmission Adaptive Learning DIY. Start the car and drive. Once you perform this procedure the Engine Control Unit (ECU) and Transmission Control Unit (TCU) will work together to learn how you drive by monitoring your driving pattern. After you follow this programming method of the TCU / ECU drive the car.
12.AFS Headlamp Reset
'AFS' means Adaptive Front lighting System (at night with the Bi-Xenon headlights) it swivels either side, pressing that button means they stay pointing straight ahead and don't turn when you turn the steering wheel
Leaking injectors and some dead injectors can be missed even when an injector is disabled.
Otherp roblems with the ignition system and mechanical components also may not show an rpm loss when aninjector is turned off
The throttle body is a tube containing a pivoting flat valve (butterfly) that is used to control the amount of air entering an engine. In an electronically fuel injected car, a throttle position sensor and air flow sensor communicate with the computer, which supplies the corresponding amount of fuel needed at the injectors. It must need re-learning throttle sensor position after clearing or repair
The scan tool monitors certain camshaft position sensors signals to determine if all conditions are met to continue with the procedure for Engine running

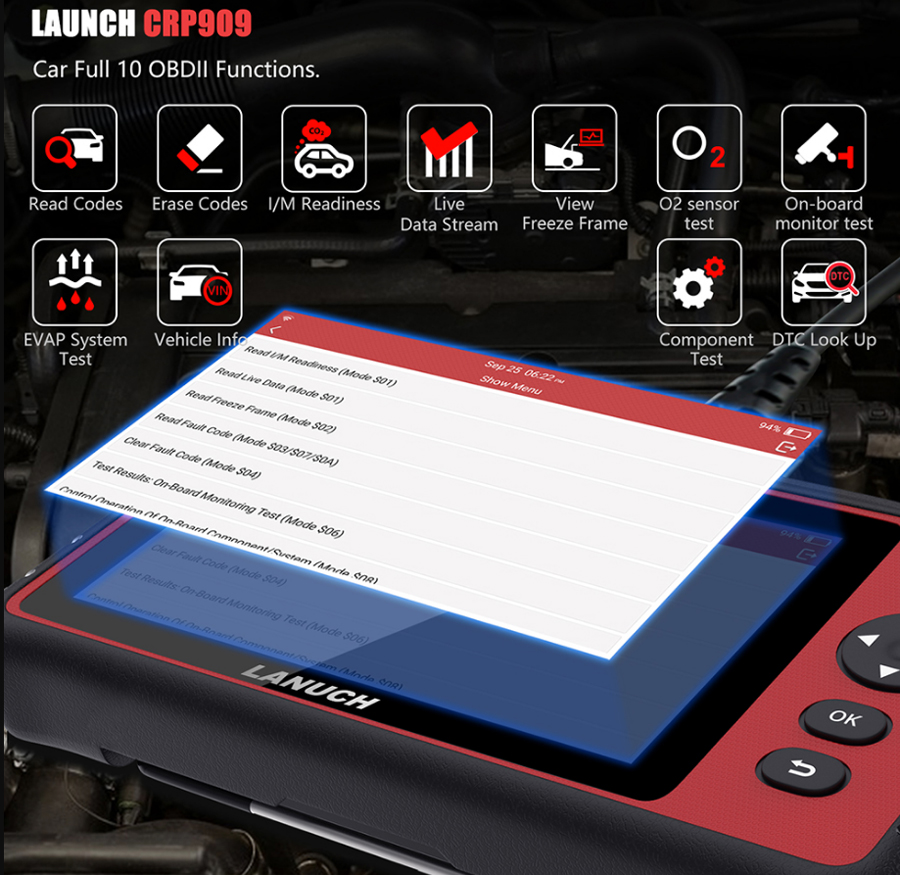

ALL 10 Mode OBDII/EOBD Functions:
Mode 01---Request current powertrain diagnostic data. Mode 02—Request freeze frame information. Mode 03—Request emissions-related diagnostic code Mode 04—Clear/reset emissions-related diagnostic information. Mode 05—Request oxygen sensor monitoring test results. Mode 06—Request on-board monitoring test results for specific monitored systems. Mode 07—Request emission-related diagnostic troublecodes detected during current or last completed driving cycle Mode 08—Request control of on-board system, test or component. Mode 09—Request vehicle information. Mode 0A—Request emissions-related diagnostic troublecodes with permanent status after a clear/reset emission-related diagnostic information.
LAUNCH X431 CRP909 OBD2 Car Diagnostic Tool Support Languages: English, French, Spanish, Russian, Japanese, German, Italian, Portuguese, Korean. meet the needs of customers in various countries

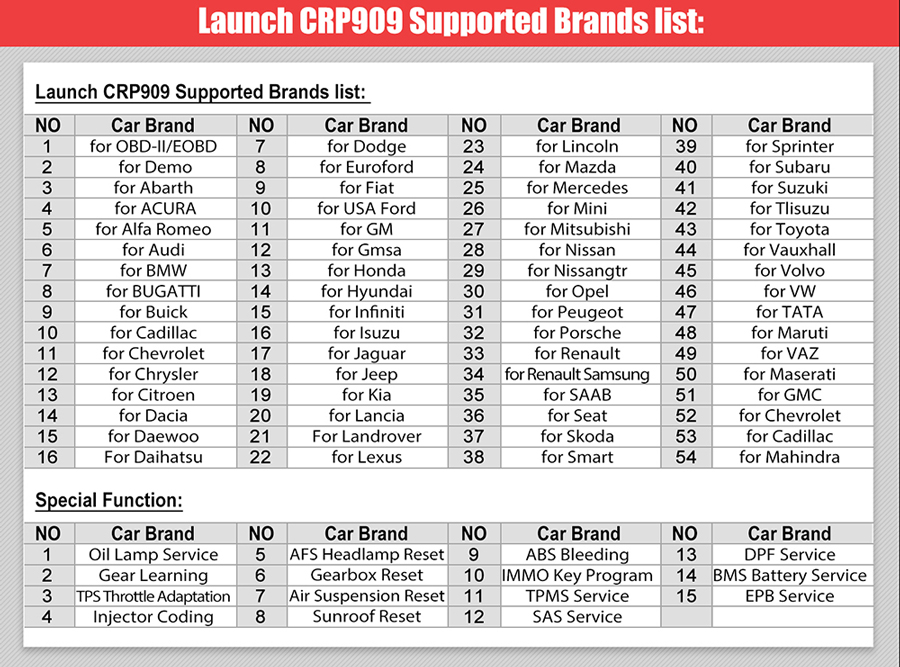

Launch CRP909 Supported Brands list:
for OBD-II/EOBD, for ACURA, for Alfa Romeo, for Audi，for BMW, for BUGATTI, for Chrysler，for Jeep, for RAM, For Citroen,for DACIA, for Daewoo, for Euro Ford, for Fiat, for USA Ford, for Mitsubishi, for Nissan, for Opel，for Peugeot, for Porsche , for Renault, for SAAB, for SAMSUNG, for Seat, For Skoda, for Smart, for Sprinter, for Subaru, for Suzuki, for SAAB, for SAMSUNG for Toyota, for Vauxhall, for Volvo, for VW, for USA GM, for Gmsa, for Honda, for Hyundai, for Infiniti, for Jaguar, for Kia, for Lancia, for Land rover, for Lexus, for Lincoln, for Mazda, for Mercedes , for Mini,for Mahindra, for TATA, for Maruti,for VAZ, for Maserati,for GMC, for Chevrolet, for Cadillac,for Buick...
Note: These special functions are NOT for all car models, if you are confused, you can send your car brand, model and release year to us, or check from official page http://qcar.x431.com/newqcar/
How to Update Launch CRP909:
1. input mailbox activate machine and connect with wifi network before update work 1.If some new software or APK can be updated, a numeric indicator will display on the "Upgrade" module on the Job menu. In this case, you may use this option to keep it synchronized with the latest version. 3.Tap "Upgrade" on the Job menu to enter the update center. By default, all diagnostic software is selected. 4.To deselect certain software, tap "Unselect", and then check the box next to vehicle model. 5.Tap "Update" to start downloading. It may take several minutes to finish it, please be patient to wait. To pause downloading, tap "Stop". To resume it, tap "Continue". If network connection failure occurs, tap "Retry" to try again. 6.Once download is finished, the software packages will be installed automatically.
|Condition:||New||Supported System:||ABS, DPF, EPB, SAS, TPMS, Injector Coding, BRT, OiL Service Reset, CVT, Gear Learning, Airbags, Auto Transmission, Engine, Immobilizer, ESP, Cruise Control, etc|
|language 2:||German, Italian, Portuguese, Korean||OBD Interface:||CAN, EOBD, OBD, OBDII|
|Advantage:||fast and effective tech-support||Country/Region of Manufacture:||China|
|Features:||Backlit Display, Built-In Battery, Check Engine Light Shut Off, Color Display, Erases Codes, Freeze Frame Displays, Internet Updateable, LCD Display, Multi-Language Interface, User Friendly||Item Type:||Engine Analyzer|
|Manufacturer Part Number:||
As Autel MK808 MS808 MS909 Pro mini V Foxwell Gt60
LAUNCH X431 CRP909
|Vehicle Type:||Passenger Vehicle||Android System Scanne:||All System & All Makes Scan Tool|

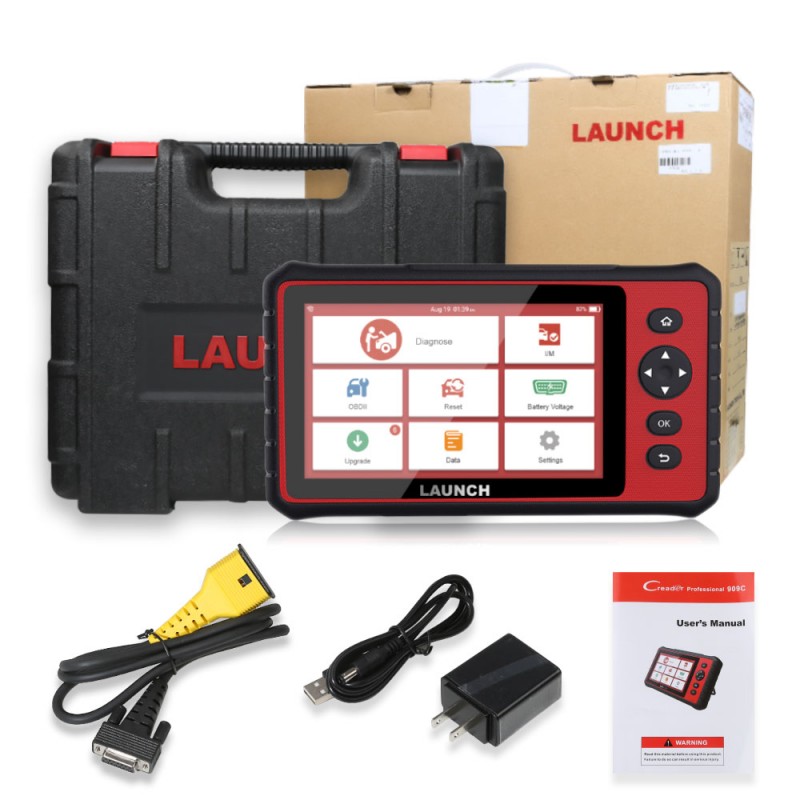

|Accessories:||Adapter Cable, Carrying Case, USB Cable, User Guide||Connectivity:||Wifi, obd cable|
|Warranty:||1 year||Type:||Automotive Scanner|
|Update:||Free update Online||language 1:||English, French, Spanish, Russian, Japanese|
