2023 Launch X431 IMMO Plus Key Programmer 3-in-1 IMMO Clone Diagnostics Functions Global Version

Free Delivery


    Looking for help? or Get More Discount
    Please contact Whatsapp: WhatsApp:+13399708796
  • Product Code: SK402
  • Availability: In Stock
  • Weight: 11kg
  • Views: 2928 times

Available Options


Launch X431 IMMO Plus Key Programmer 3-in-1 IMMO Clone Diagnostics Functions Global Version

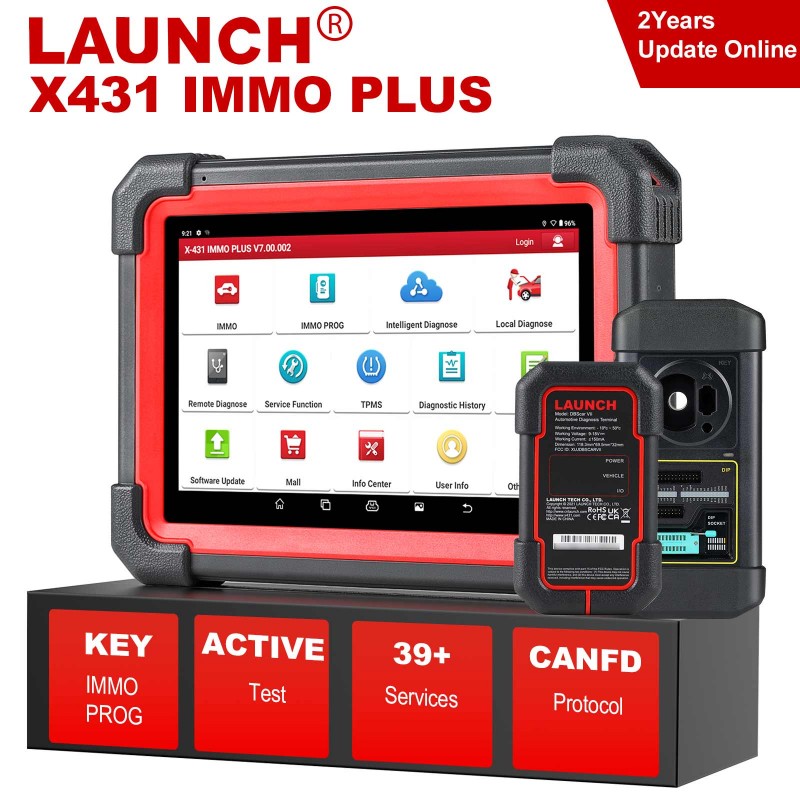

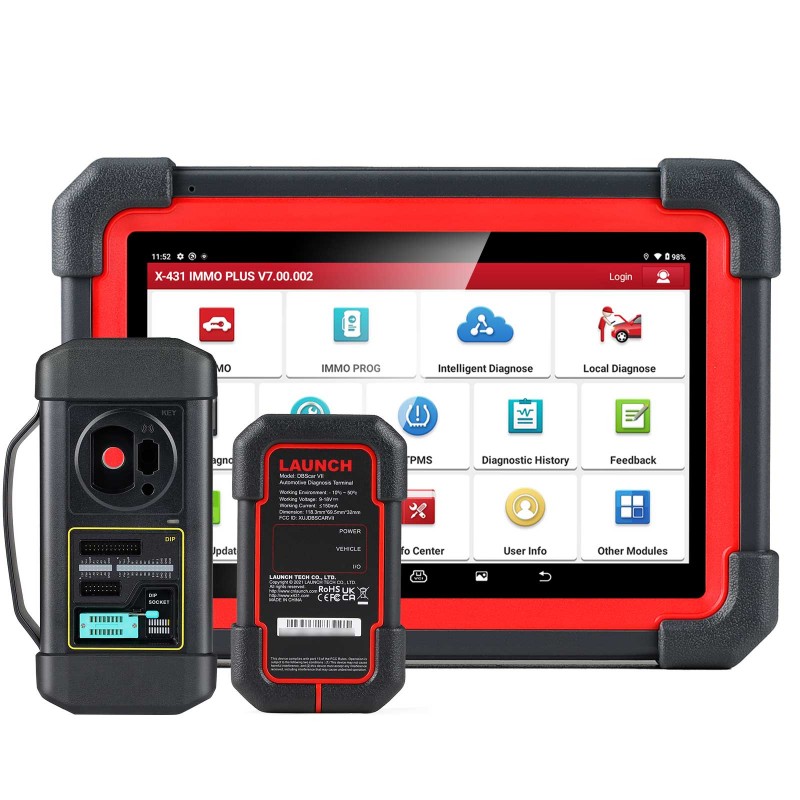

LAUNCH X431 IMMO PLUS key programmer is a new generation of 8-inch automobile special IMMO matching tool with high configuration and super performance. The host is developed based on the Android 10.0 open system, adopts a 2.0Ghz 4-core high-efficiency processor, 4GBRAM+64GBROM large storage, and is equipped with a high-endurance battery, which make the diagnosis faster, more stable and more durable.

The [EU-UK Version] is only available for customers in the UK or European Union and is IP-restricted. Customers from other countries should purchase the global version.

X-431 IMMO PLUS integrates powerful IMMO matching, IMMO programming, full-model system-wide diagnosis with plus functions and special functions. It is the best choice for intelligent maintenance of the IMMO matching tool in repair shops.



1. Global version No IP limited
2. 3-in-1: IMMO+CLONE+Diagnosis
3. Two Years Free Update
4. Comes with X-PROG3 to do Key Programming
5. Engine Module and Transmission Module Cloning
6. Anti-theft matching for Mercedes-Benz, BMW, Audi, Volkswagen and Porsche
7. All Key lost for Audi and Volkswagen.
8. All System Diagnosis + 39 More Reset Functions + ECU Coding + Active Test
9. 22 Kinds of Languages Support.
10. VAG Guided Function
11. FCA AutoAuth Access

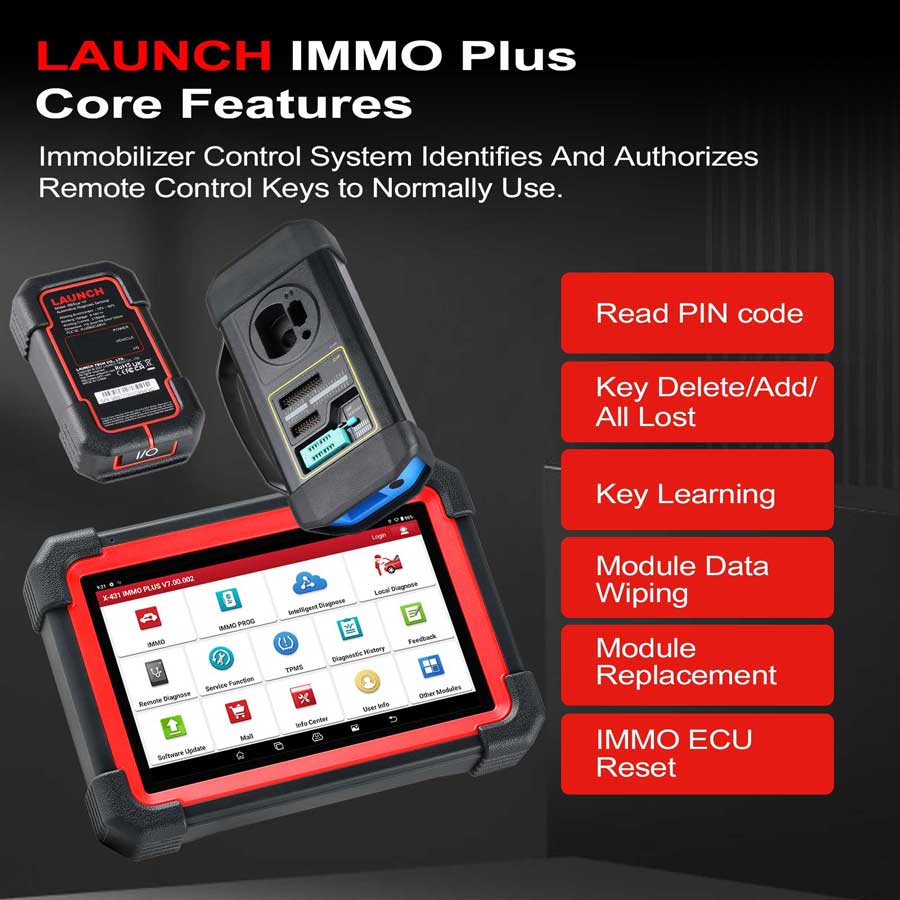

LAUNCH X431 IMMO PLUS Functions:
Three functions in One
IMMO: read password, match key, replace module, data wipe
Clone: Engine, Gearbox
Diagnosis for Full function of all car series: diagnosis, coding, IMMO, initialization
IMMO IMMO password reading
ignition key learning
IMMO module replacement
module erase Mercedes-benz, BMW
CLONE engine module clone
Gearbox module clone
DIAGNOSTICS system diagnosis
special functions

IMMO PIN code reading
Adding keys and all keys lost matching without removing the 4th generation OBD of Volkswagen
Ford IMMO (data synchronization) initialization
Nissan B18 IMMO replacement without password
Lost Toyota keys
Lost all Volvo keys
Lost all Peugeot keys
Citroen key lost/module replacement
BMW ISN code reading and writing
bmw key matching
BMW 6/8HP gearbox erase
Porsche key matching
Mercedes-Benz key matching (FBS3)
Mercedes-Benz key increase calculation password (FBS3)
Mercedes-Benz key lost calculation password (FBS3)
Benz engine, erase gearbox (FBS3)
Benz lock replacement (FBS3)
The Mercedes-Benz gear module erase (FBS3 and before)
Mercedes Engine Block Clone (FBS4)
Mercedes-Benz Gearbox Module Clone (FBS4)
VW Audi MQB Engine, Gear Box, Steering Column Replacement
VW Audi BOSCH engine clone
VW Audi Siemens engine clone
Adding and all keys lost for the fourth-generation instrument of Volkswagen Online
VW online fourth-generation meter MQB keys added and all keys lost
Volkswagen fourth generation instrument (5ND920873B) replacement
UDS engine replacement function after 14 years, fourth-generation instrument + fifth-generation Bosch engine (no need for the original car engine)
Bosch TCM clone
ZF TCM clone
Temic TCM clone
Bosch TCM clone
ZF TCM clone
Temic TCM clone
bmw key matching
BMW engine ISN code reading and replacement
BMW BOSCH engine clone
BMW Siemens engine clone
BMW E chassis 6HP, 8HP gearbox erase
BMW E chassis 6HP, 8HP gearbox clone
BMW F/G chassis 8HP gearbox erase
BMW F/G chassis 8HP gearbox clone
BMW (CAS1, CAS2, CAS3, CAS4, FEM/BDC) Replacement
Porsche key matching
Martha mileage adjustment
Mercedes-Benz key matching (FBS3)
Mercedes-Benz key increase calculation password (FBS3)
Mercedes-Benz key lost calculation password (FBS3)
Benz engine, erase gearbox (FBS3)
Benz lock replacement (FBS3)
The Mercedes-Benz gear module erase (FBS3 and before)
Mercedes Engine Block Clone (FBS4)
Mercedes-Benz Gearbox Module Clone (FBS4)

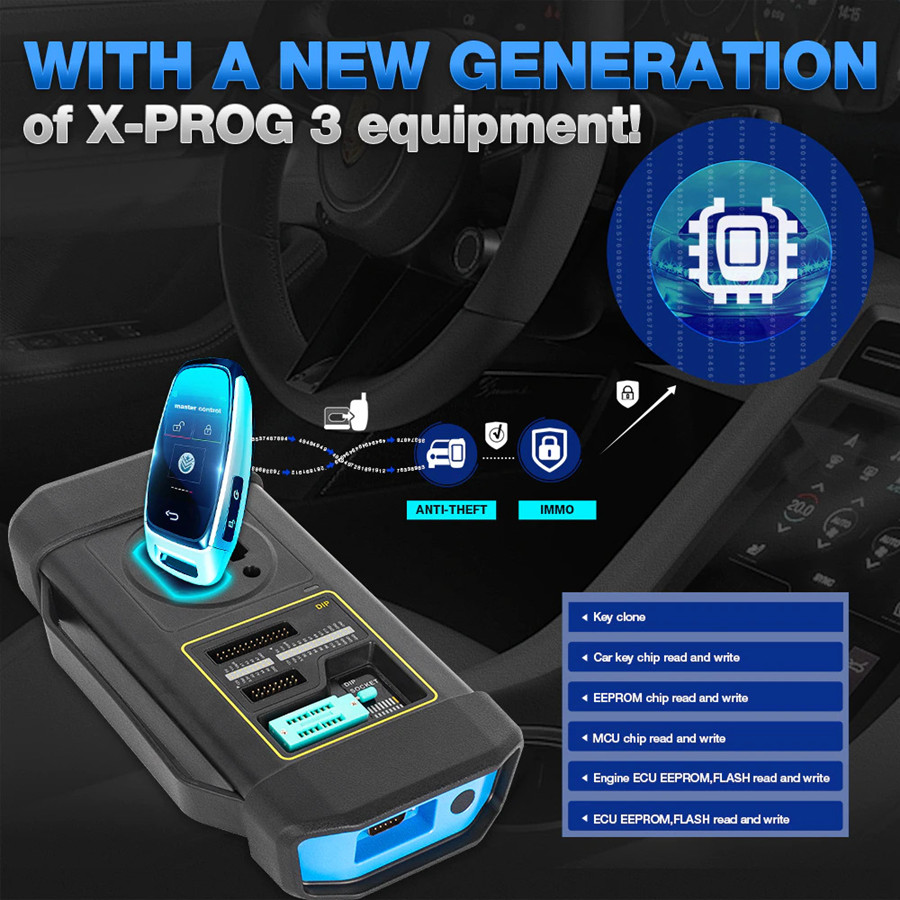

Launch X431 IMMO Plus Work with XPROG-3:

In order to get a new key, an experienced lo-cksmith together with LAUNCH IMMO PLUS programming tool can offer programming services chips/remote key fobs/transponder to perfectly match the settings of your car. LAUNCH IMMO PLUS programmer also has access to manufacturer's pin codes that 100% meet the preset specifications set by the manufacturer. Especially working with the X-PROG3 Immobilizer & Key Programmer, LAUNCH IMMO PLUS enables key chip reading & matching, key generation, ECU clone, etc., to be easily and effectively.

Advantages of PROG-3 Programmer Brings for LAUNCH IMMO Key Programming Tool:

  • Engine ECU Module Clone & Replacement ( for 5000+ Models)
  • Gearbox ECU Module Clone & Replacement ( for 5000+ Models)
  • Remote Control Matching / Key Generation / Key Learning
  • Read/Write Key EEPROM, MCU, Engine, Immobilizer
  • Backup & Restore Bosch/Siemens Engine ECU Programming Data
  • VW & Au-di Key Learning/All Lost
  • 5th-Gen. Au-di (0AW/0B5) Gearbox ECU Replacement
  • 5th-Gen. VW UDS engine ECU Reading, Writing & Clone
  • Mercedes-Benz Key Adding/All Lost
  • Mercedes-Benz IMMO ECU Data Wiping
  • Mercedes-Benz Infrared Key Reading/Writing
  • BMW Key Adding/All Lost; ECU Replacement
  • BMW E chassis 8HP Gearbox ECU Data Wiping
  • Porsche Key Adding/All Lost; ECU Replacement
  • Read BMW Engine INS Code



Every automobile actuator has a record code in ECU, which is the basis for automobile computer to mobilize their work. LAUNCH X431 IMMO ELITE PLUS is equipped with advanced ECU coding function for addressing the following issues :

  • Component Matching:

After you change the bad actuators or certain parts, you need to use this function to make a new code and recognize the new actuators.

  • ECU Online Coding:

ECU coding enables multiple car systems to recognize each other and then the actuators can start to work.

  • Personalization:

Unlock hidden features,deactivate annoying features.


OE-Level Full System Diagnostics

LAUNCH X431 IMMO Plus automotive scanner can scan 120+ modules like ECM(engine), TCM(Transmission), ABS, SRS, Brake System, BCM(Body Control Module), EPS(Eletronic Power Steering), HVAC(Heat, Ventilation and Air Conditioning), TPMS(Tire Pressure Monitor System Reset) and so on to perform OE level diagnostics to read and clear codes, view live data stream, and retrieve ECU information, matching & adaptations, ECU Coding, allows you to get a faster and more accurate test result on all electronic systems.

Bi-Directional Control

LAUNCH X431 IMMO Plus automotive scanner can perform Bi-directional Control over various car systems and components to determine the integrity of a system or parts like ABS, SRS, window, door, roof, by reading the ECU data, or by monitoring the operation of the actuators.

  • Turn on the radiator fan
  • Turn on/off the cooling fan
  • Open/close windows
  • Operate mirrors
  • Turn on/off the lights
  • Turn on/off the sound horn
  • Test door lock actuators
  • A/C Compressor Activation
  • Modulate the throttle
  • Compression test
  • And More...


39 Service Functions:
  1. Brake Reset : After replacing the brake pads, you need to reset the position of the brake pads before installing the new brake pads to close the warning light.
  2. Oil Reset: Close the oil service light, reset service mileage & service interval after replacing the engine oil, and the next maintenance calculation cycle is entered.
  3. SAS Reset: Learn to correct the angle and solve the problem of the steering angle of the steering wheel.
  4. BMS Reset: Use the power management system, the battery needs to be re-matched after the battery is replaced, so that the car computer can recognize the new battery.
  5. Bleed Reset : When changing a new brake fluid, there is a high possibility that air will enter the brake fluid pipeline. In the traditional way, one person steps on the brake and another person changes the operating fluid. This function can perform the brake operation, and only one person is required to change the brake fluid.
  6. SUS Reset : This function needs to be performed to level the body height sensor in the air suspension system when the body height sensor and the control module or the car is leveled incorrectly.
  7. TPMS Reset: When replacing TPMS sensors or the signal from the sensor is lost it can quickly look up the tire sensor from the vehicle’s ECU, reset tire pressure and turn off the tire pressure MIL.
  8. GEAR Reset: The vehicle has a crankshaft position sensor. This sensor collects the 58-tooth signal of the flywheel to determine the top dead center ignition time of a cylinder (reference signal). If this sensor is replaced, the reference will be lost, and gear signal learning is necessary.
  9. Injector Reset (Injector Coding) : The engine injector has a code. After replacement, you need to write a new code into the computer so that the car computer can correctly identify the injector.
  10. AFS Reset: It can detects the ambient light and then decides whether to turn on the headlights automatically. It can also adjust the headlights in time by monitoring the speed of the vehicle and the posture of the body.
Launch X431 IMMO Plus Advantages:
1. Supports VW/AUDI MQB platform engine ECU replacement or cloning (Read engine ECU data directly from the key).
2. Supports VW/AUDI MQB platform gearbox ECU replacement or cloning.
3. Supports ECU replacement for fifth-generation Audi (0AW/0B5) gearboxs.
4. Supports reading, writing & cloning of the ECU for fourth-generation VW UDS engines.
5. Supports BMW E chassis 8HP gearbox ECU program wiping.
6. Support Mercedes(Engine, Gearbox, EIS) and BMW(Gearbox) ECU IMMO data erase.
7. Supports 170+ Bosch, 10+ Siemens engine ECU and 18+ gearbox ECU BENCH mode clone.
- Bosch engine ECU: ME17, MED17, EDC17, MEVD17, etc.
- Siemens engine ECU: BMW(MSV90, MSD87, MSD85,MSD81, MSD80), Mercedes(SIM271DE2.0,SIM271KE2.0), VW/Audi(SIMOS8.6x,SIMOS8.5x,SIMOS8.4x), etc.
- Gearbox ECU: DQ200-MQB, DQ250XX, DL501 Gen1,VL381,VGS2- FCVT,VGS-FDCT,DQ400E,DL501 Gen2,DL382-7F,VGS2-FDCT,9G_Tronic,DQ380,DQ381, DQ500,AL551,AL450,AL552,AL951,8HPXX, etc.

1.Engine Module and Transmission Module Cloning

If the original vehicle module can communicate, you can use cloning to back up the data of the original vehicle module, restore it to a foreign module (new or second-hand), and directly replace and install it.

①For Engine Module

It is compatible with over 316 kinds of Engine module type of Bosch、Continental、Siemens、Delco etc.
It also works for 62 kinds of Car brands as below:
Abbas,Alfa romeo,Alpina,Aston martin,Audi,Bentley,BMW,BMW Brilliance,Bugatti,Citroen,Dacia,Dallala,Ferrari,Fiat,Jaguar,Lamborghini,Lancia,
Land rover,Maserati,McLaren,Mercedes,Mini,Opel,Peugeot,Porsche,Renault,Saab,SEAT,Skoda,Vauxhall,VW,Volvo,Iveco.
Honda, Hyundai,Infiniti,Isuzu,Kia,Mahindra,Mazda,Mitsubishi,Dongfeng Nissan,Subaru,Suzuki,Toyota.
Chang'an, Great Wall,Geely, JMC.

②For Transmission Module

It is compatible with over 47 kinds of Engine module type of Bosch、Continental、Siemens、Delco、Getrag、ZF、Temic etc.
It also works for 36 kinds of Car brands as below:
Audi,Bentley,BMW,Jaguar,Land rover,Maserati,Mercedes,Porsche,Renault,SEAT,Skoda,VW,Daimler,Volvo,Alfa Romeo,Alpina,Aston Martin,Lamborghini,David Brown,Rolls-royce,Weitzman
Mazda, Hyundai,Infiniti,Kia, Dongfeng Nissan
For Specific engine and transmission module type, please contact us.

2.Volkswagen & Audi anti-theft matching

①Fourth generation instrument + engine module

A.Key learning
B. Lost all keys
C. Meter replacement
D. Engine Module Replacement

②Four-generation comfort module + engine module

A.Key Learning
B.Lost all keys
C.Engine Module Replacement

③The fourth generation EZS/kessy+ engine module

A.Key Learning / All Key Lost
B.Engine module replacement

④Five-generation anti-theft system A4/A5/Q5/A6/A7/A8

A.Key learning
B.Lost all keys
C.Engine Module Replacement
D.Gearbox module replacement
E.Steering column lock module replacement

⑤Volkswagen MQB anti-theft system

A.Key learning
B.MQB engine module replacement
C.MQB gearbox module replacement
D.Engine module cloning
Gearbox module cloning

⑥Porsche Immobilizer Match

A.Anti-theft key matching: Read anti-theft data/Get CS code/Generate dealer key/Matching keys
B.Anti-theft module replacement: front-end electronic modules of 911, Boxster, Cayman, Cayenne, Macan, Panamera models.
C.Engine computer replacement: Cayenne and Panamera models.
D.Battery restoration: Cayenne and Taycan models.
For model details, please contact us.

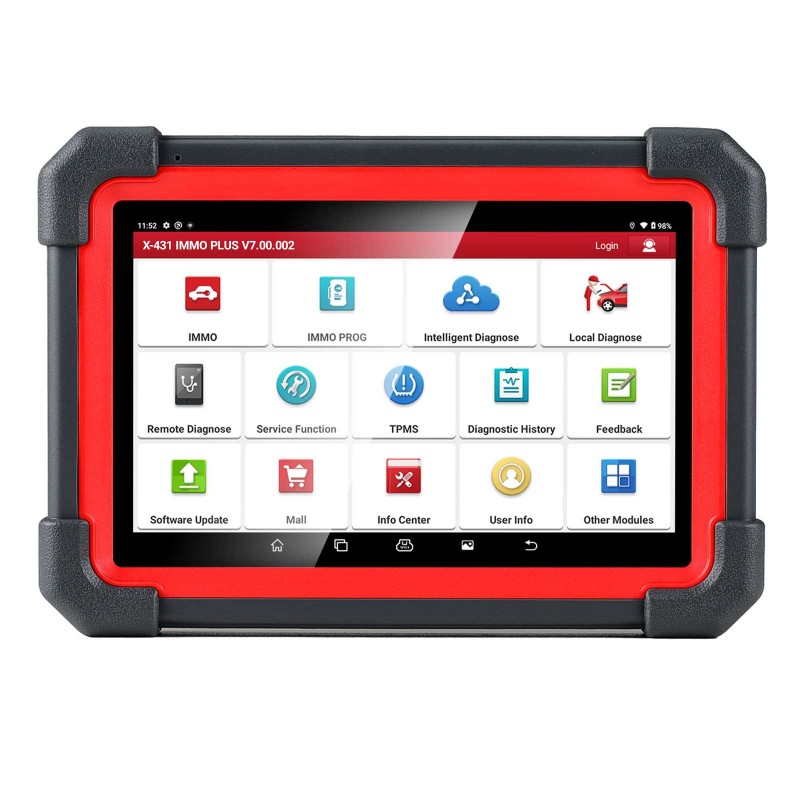

X-431 IMMO PLUS Host Specifications:
Processor 2.0GHz 4-core
Operating system Android 10.0
Memory 4GB
Storage 64GB
Battery 47880mWh(7.6V,6300mAh)
Display 8-inch, 1280*800
Camera Rear 8MP
WIFI 2.4GHz/5GHz (dual frequency)
Interface TYPE A *1 &TYPE C*1
Operating temperature 0~50℃
Size 234*166*39.5(mm)

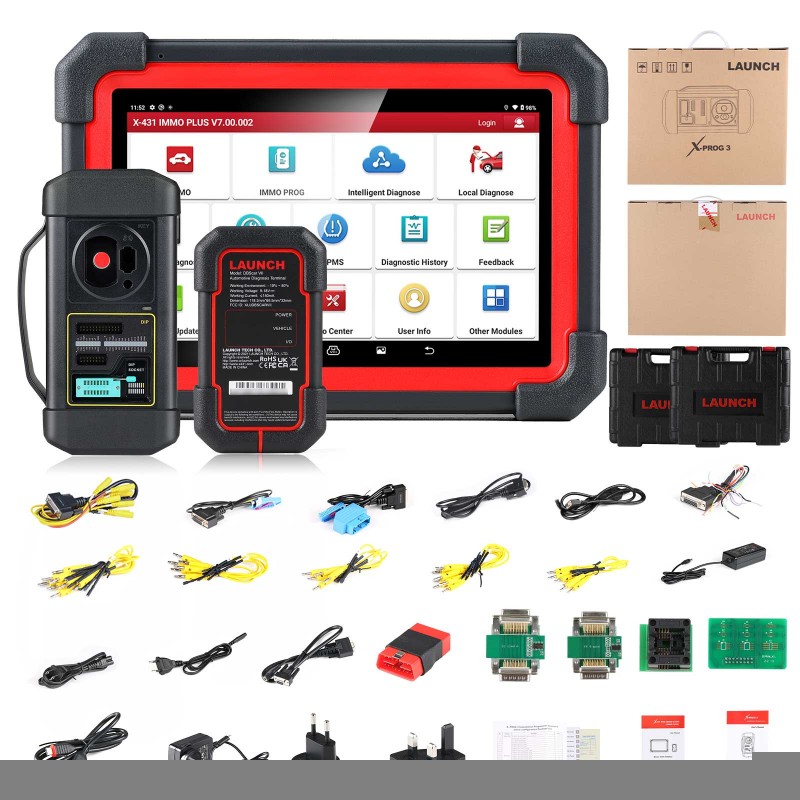

Package Includes:

1pc x LAUNCH X431 IMMO PLUS Display tablet
1pc x VCI connector
1pc x Diagnostic cable
1pc x Password envelope
1pc x Type-A to Type-C USB cable
1pc x X-PROG 3 immobilizer programmer kit
1pc x Non-16pin adaptor cable kit
1pc x Power adaptor
