Launch X431 Tesla 12 + 20 Connector, Car OBD2 20 Pin Detection Adapter Diagnostic Cable For Tesla Model X / S

Launch X431 Tesla 12 + 20 Connector, Car OBD2 20 Pin Detection Adapter Diagnostic Cable For Tesla Model X / S

This adapter is designed to connect modern diagnostic scanners with an OBD2 connector to TESLA cars (2019, 2020, 2021,2023 Model 3 and Model Y). The OBD2 port allows you to read CANBUS data that is not available on the main screen: battery temperature, engine temperature, cell voltage, etc.



Specifications:

12 Pin Male Female Connector for Tesla 2012-2015 model S/X OBDII diagnostic harness electronic cable of new energy (Before placing an order,
please confirm the OBD interface model of your vehicle)

1. The premium material gives the cable excellent flexibility and durability.
2. Small size, light weight, easy to store, easy to carry and use.
3. Plug and play, easy to install, does not affect the function of the original car.
4. Corrosion and wear resistance.
5. Power supply voltage: 9-16V

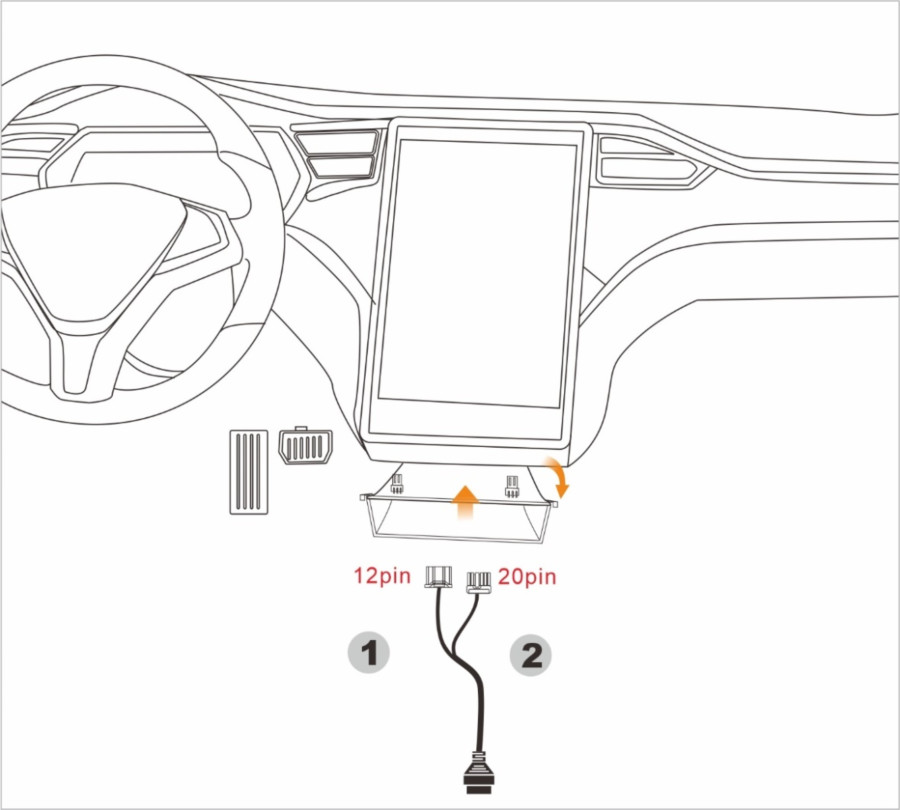

This connector is suitable for Model S and Model X models. It can test fault codes, clear fault codes, and support special functions. Check the official website to find out which special functions are supported. (http://qcar.x431.com/qcar/#/)

The specific wiring diagram of the Tesla-12+20 connector:

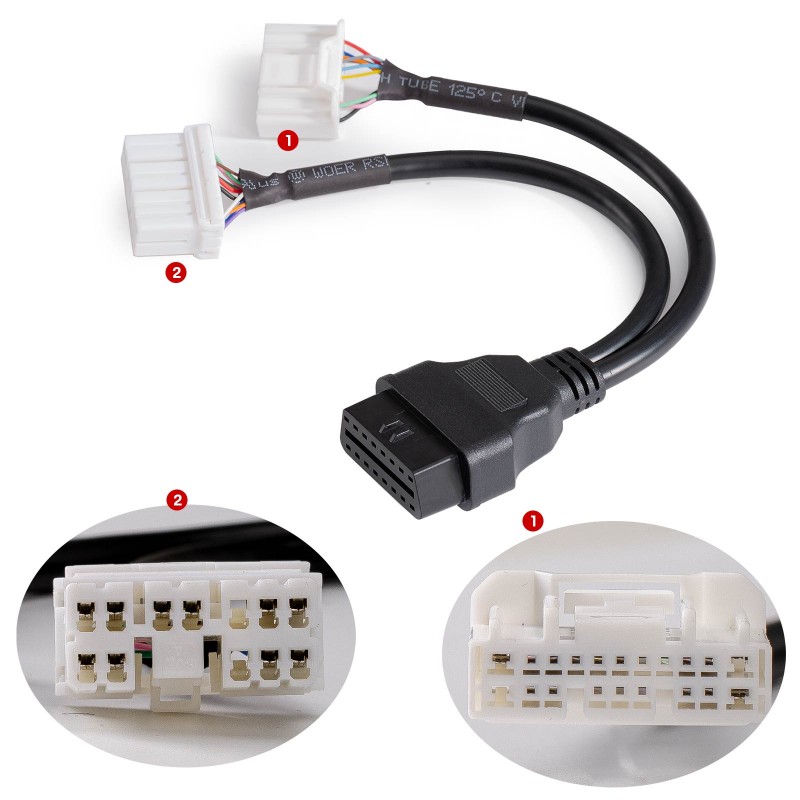

Part [1] is the Tesla-12+20 connector (12PIN) wiring diagram, which is applicable to S(X) models produced before September 2015 (including September);
Part [2] is the Tesla-12+20 connector (20PIN) wiring diagram, which is suitable for S(X) models produced after September 2015.

Package Includes:

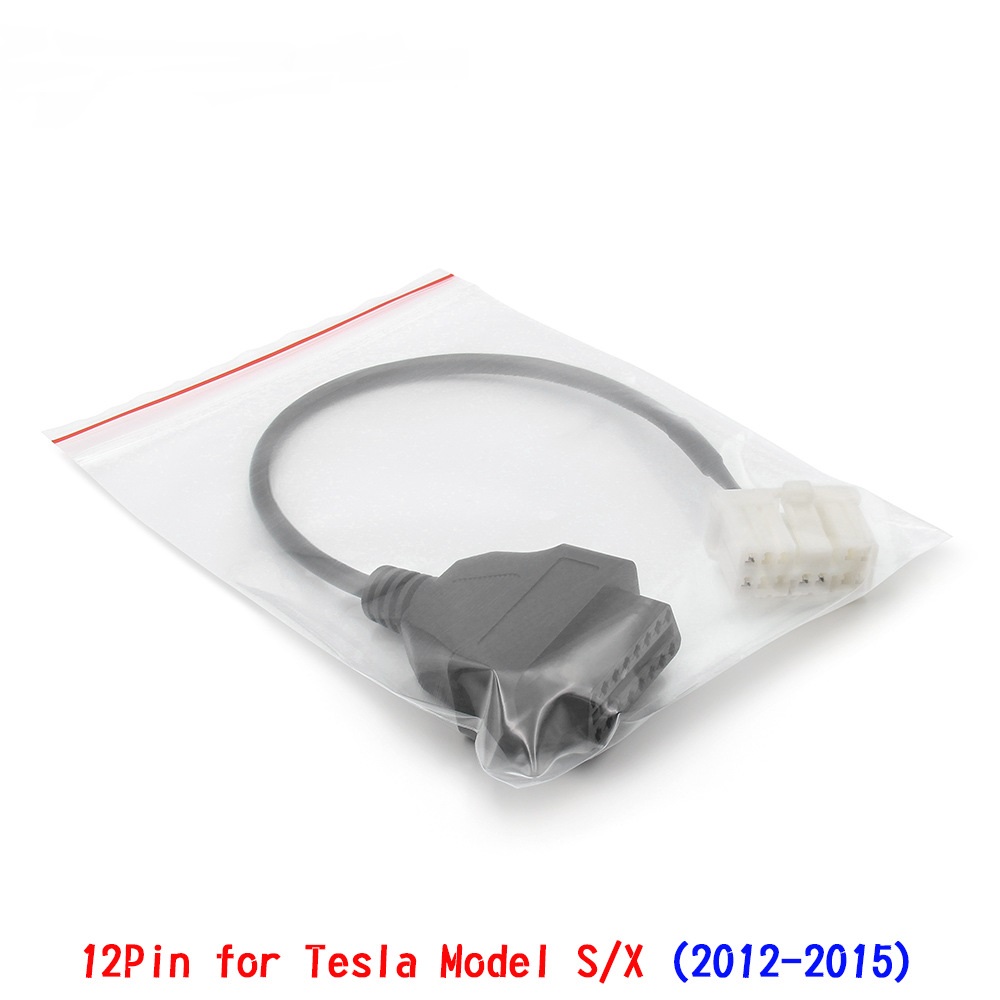

1*OBDII TO 12Pin for Tesla Model S/X(2012-2015)
