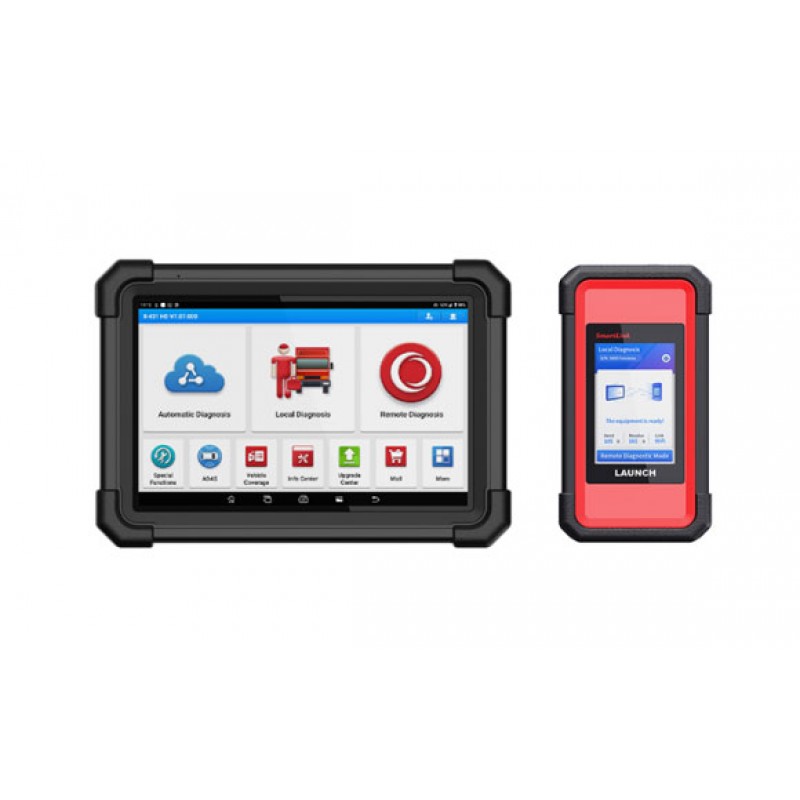

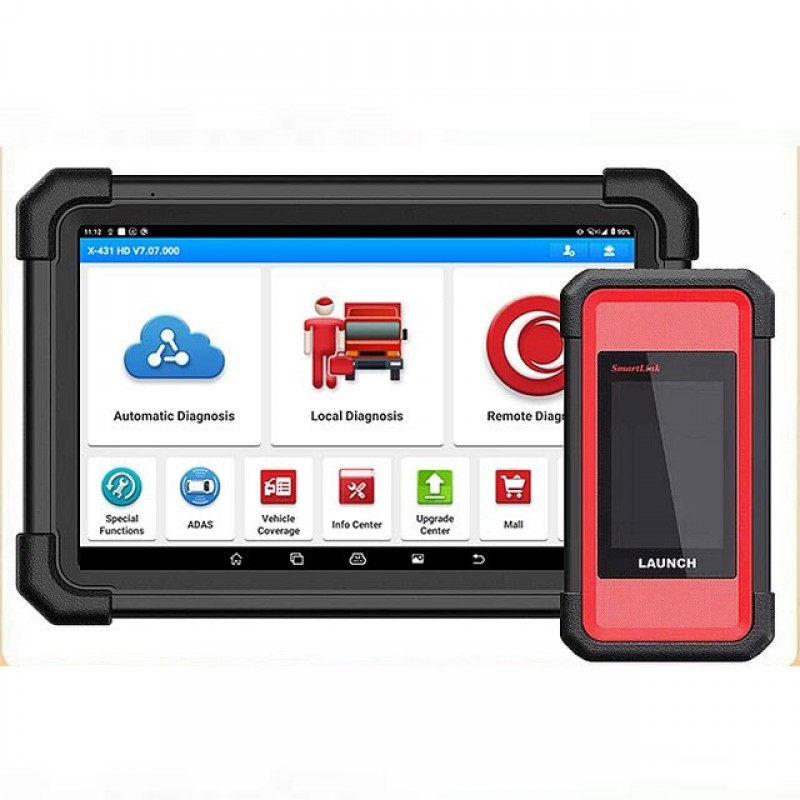

Launch X431 V+ SmartLink HD Heavy Duty Truck Diagnostic Tool for 12V 24V Trucks
$1,220.00 $1,290.00
- Product Code: SH105
- Availability: In Stock
- Weight: 10kg
- Views: 3783 times
Please contact Whatsapp: WhatsApp:+13399708796
X-431 V+SmartLink HD is LAUNCH's new generation of professional commercial vehicle diagnostic equipment. It adopts a new UI design and more advanced hardware solutions to improve users' efficiency in judging commercial vehicle faults and obtain a better user experience.
Highlights:
Replace Launch X431 V+ and HDIII module.
SmartLink C 2.0 is an upgraded version of HDIII, with hardware upgrade and function upgrade.
2023 Newly Added CANFD Connector——X431 SMARTLINK C 2.0,more powerful, faster
For trucks only, if need both cars & trucks, check X431 V+ and SmartLink C 2.0
Support commercial vehicles, passenger vehicles, new energy and other models: Covering Cummins, Bosch, Weichai, Shangchai, Yuchai, Xichai, Chaochai, Yangchai, Quanchai and other engine diagnostic software, it supports trucks, buses, construction machinery, agricultural machinery, trailers, ships and other types of vehicle software.
Support full system fault diagnosis, with functions such as code reading, code clearing, data stream reading, special functions, and action test.
Smartink C 2.0 has a visual operation interface to make diagnosis more convenient, supports more model software than HDIII and supports multiple communication methods.
Features:
l Automatic Diagnosis according to the Factory Areas
l SmartLink Super Remote Diagnosis
l DPF Regen, Parameter Setting, Cylinder cut-off/compression test, Service Reset, Injector Coding, Speed Limit Adjustment, ongoing updating...
l Bi-directional Test
l ADAS HD Calibration
l Read and clear DTCs
l Delivers a live stream of data
Compared with X-431 HDIII, the SmartLink C 2.0 is more powerful in function.
The transmission speed is faster and more stable.
The visual operation interface makes it more convenient.
It supports commercial vehicles, passenger vehicles, new energy and other models.
It supports super remote diagnosis.

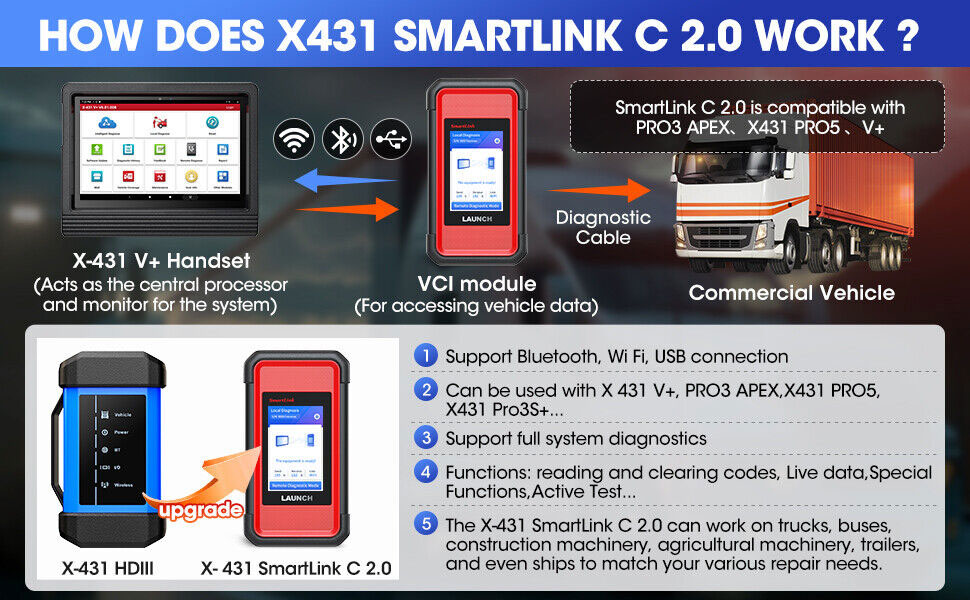

The SmartLink C system consists of the following two parts:
1.SmartLink Service Platform -- For binding the SmartLink C dongles and posting the remote repair orders (*Note: Orders can be submitted only after the SmartLink C dongle is successfully bound)
2. SmartLink C Dongle -- Connects with vehicle’s Data Link Connector (DLC) to obtain vehicle information before submitting repair orders.
Launch SmartLink C 2.0 User Manual
Smart Link C 2.0 Specifications:
CPU | dual processor: Cortex-A7+Cortex-M7 |
operating system | Linux |
resolution | 320x480 |
power | < 6w |
storage | 8GB |
memory | 256M |
working temperature | 0℃~50℃ |
working voltage | 9V DC—36V DC |
dimensions | 200mm×110mm×47mm |

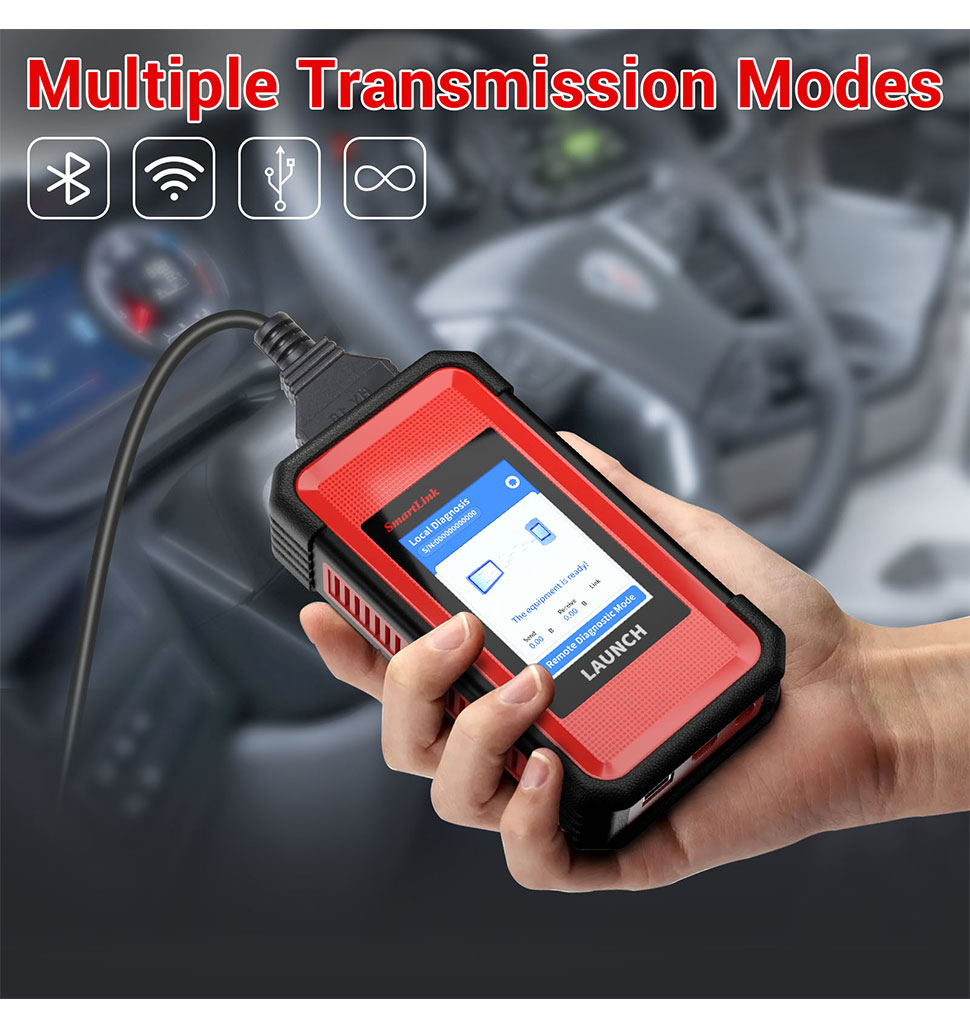

communications | WIFI/Bluetooth/Ethernet |
Launch SmartLink C 2.0 Vehicle List
88 supported software list:
X431, JCB X431, Renault Heavy Vehicle X431, IRIZAR Heavy Vehicle X431, Zhongtong Bus (ZHONGTONG BUS) X431, USAFORD Diesel Version X431, AISIN Heavy Vehicle
X431, Yutong Bus X431, Foton Auman X431, IRISBUS Heavy Duty Truck X431, Kenworth Heavy Duty Truck X431, HD_TATA X431, VOITH Heavy Duty Truck
X431, Benz heavy truck X431, JAC heavy truck X431, CREDO heavy truck X431, Stirling heavy truck X431, Doosan engine X431 Perkins
X431, VOLVO Heavy Duty Truck X431, Freightliner Heavy Duty Truck X431, Dongfeng Commercial Vehicle X431, IWC Heavy Duty Truck X431, Peterbilt Heavy Duty Truck X431, DEUTZ
X431, Cummins engine X431, SCANIA X431, Chaochai X431, Xixing heavy-duty vehicle X431, WABCO ABS X431, ZF
X431, ISUZU Heavy Duty Vehicle X431, FUSO X431, Xichai X431, AutoSearch X431, Case X431, KNORR ABS
X431, IVECO Heavy Duty Vehicle X431, ASTRA X431, Quanchai X431, Dachai Heavy Duty Vehicle X431, Steyr X431, Miller
X431, special for Yuchai X431, BREMACH X-431, Dongfeng Yufeng X431, Golden Passenger Car X431, heavy-duty natural gas X431, HD_FLEXICOIL
X431, BOSCH X431, Hino X431, BONLUCK Bus X431, Higer Bus X431, DENSO_Diesel/Diesel Engine X431, Volvo Construction Machinery
X431, Shangchai X431, ERF X431, ALLISON gearbox X431, Ashok Leyland X431, DELPHI X431, MWM heavy duty vehicles
X431,DAF X431,UD Truck/Nissan Diesel X431,DETROIT Engine X431,Yang Diesel Engine X431,King Long Bus X431,Heavy Truck Demonstration Software
X431, FAW Jiefang X431, construction machinery X431, MACK heavy-duty vehicle X431, HD_ABS system X431, diesel version Mitsubishi X431, heavy-duty vehicle standard
X431, Hyundai Heavy Vehicle X431, SETRA Heavy Vehicle X431, WP Diesel Engine X431, Heavy Truck Aftertreatment System X431, Diesel Nissan X431, Commercial Vehicle One-key Scan
X431, Sinotruk X431, SITCAR heavy truck X431, Sunlong Bus (SUNLONG) X431, heavy truck Jiangling X431, diesel version Toyota
X431, MAN X431, NEOPLAN Heavy Duty Truck X431, Sunwin Bus (SUNWIN) X431, Caterpillar Heavy Duty Truck X431, TRAILER Heavy Duty Truck
