THINKTOOL Pro TPMS ECU Coding Active Test Full System Car Diagnostic Tool 28 Resets Code Reader Car Auto Scanner Key Programming
- Brand: Launch Thinkcar
- Product Code: 1005002356943550
- Availability: In Stock
- Weight: 5kg
NOSTICE: THINKTOOL Pro free update 2 years. And after 2 years if you not update that you could still use the all functions(Included special functions). if you don't update it after 2 years that you can't use the new car softwares and functions
Why You Need Thinktool Pro
To diagnose car comprehensively, Thinktool Pro scanner can read DTCs and data streams, perform active test, Coding for ALL systems. For instance: Engines/Auto Transmission/Airbags/Immobilizer/Key Coding/ABS/Cruise Control/Instruments/ Self Leveling Suspension systems/Seats/Doors/Gateway/Steering Angle/Air Suspension/Body Systems/Electronic Power Steering & Motor Assisted/Power Steering/Tyre Pressure/Rain Sensors/4WD System/Stabilizer/Intelligent Parking Assist/Door Motors/Audio Systems/Air Conditioning/Tiptronic/Anti Theft/Soft Top/Headlamp Leveling/Central Locking/Automatic Clutch/ DPF Reset/Electric Windows/Plip Programming/Heated Rear Window/Xenon Headlights/Wash Wipe/Fuel Burning Heater/Transfer Box/Seat Memory/Oil Life Service Reset/Sliding Doors/Electronic Throttle/Navigation System/Rollover Sensor/Cruise Control/ Multi Functios.

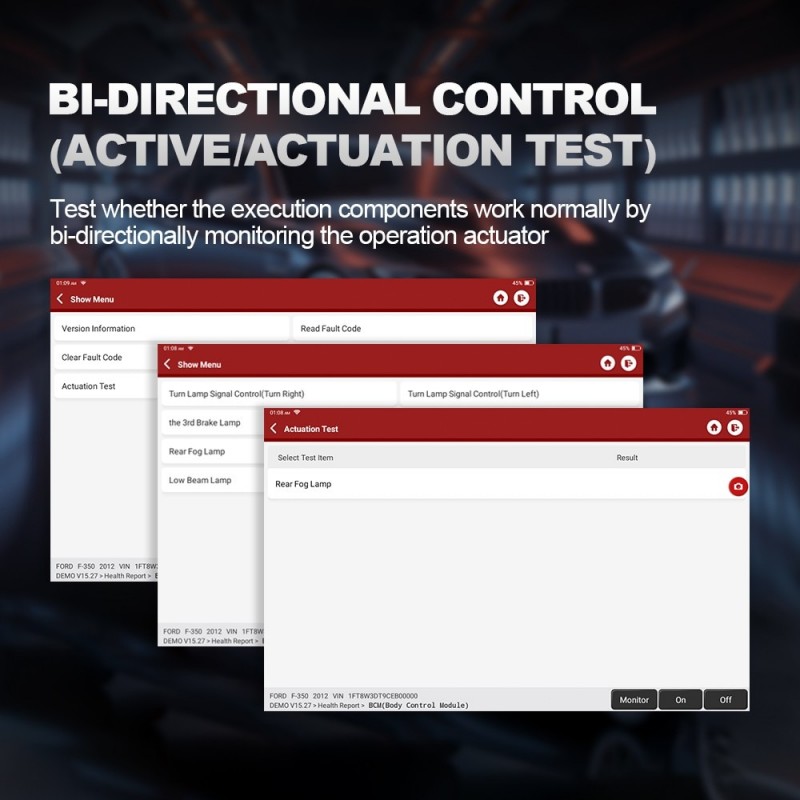

Support Actuation Test
This function is used to test whether the execution components in the electronic control system can work

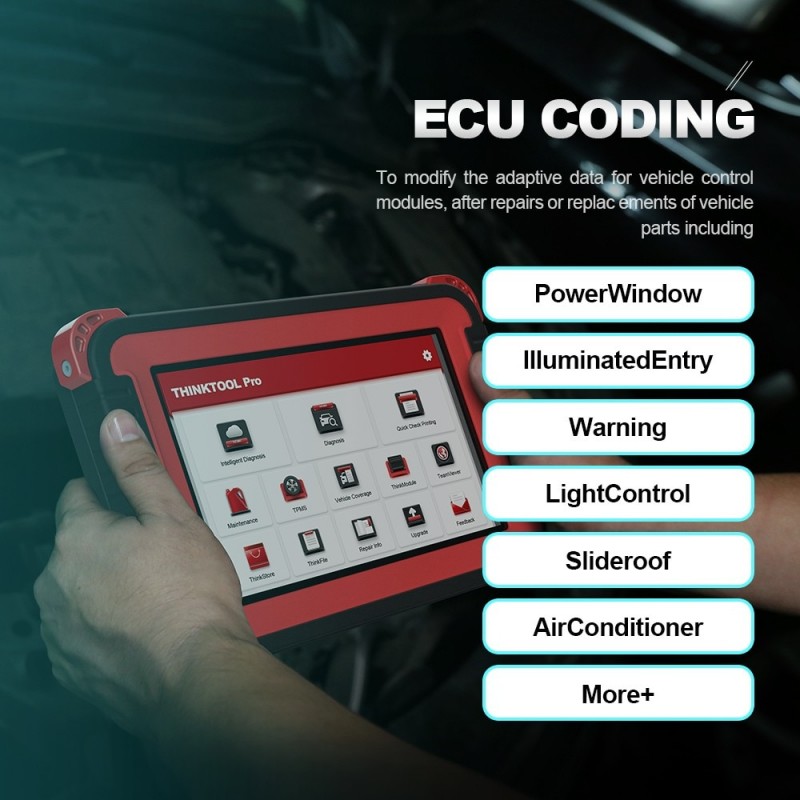

Support ECU CODING
The Coding function is used to re-flash the vehicle control modules, it allows you to reprogram adaptive data for certain components after making repairs or replacements.
Support Graphical display
"1.Combine: Displayed in graph merge status for data comparison. 2.Value: Displayed the parameters in values and shown in list format. 3.Customize: Customize the data stream option to be viewed. Tap the button, a pull-down list of the data stream items appears on the screen. Select the desired items (max12 items), and then screen will display the waveforms corresponding to these items immediately. If need to remove any items, just deselect them."
Support 8 Languages
English,German,Spanish,French, Italian, Japanese, Portuguese,Russian
Support Diagnostic Feedback
If you encounter an unresolved problem or diagnostic software bug during diagnosis, you can revert the most recent 20 test records to Thinkcar Team. When we receive your feedback, we will analyze and troubleshoot it in a timely manner, to improve the quality of our products and user experience.
Support Quick print diagnostic reports
Thermal printer, work with the main unit, also can work with module dock. Quick print diagnostic reports anytime and anywhere.
Vehicle Coverage: Support more than 93 brands Vehicles
For ASTONMARTIN, For AUDI, For AUSTFORD, For AUSTHOLDEN, For AUTOSEARCH, For BAIC, For BENZ, For BMW, For BXFIAT, For BXGM, For CHANGAN, For CHANGCHENG, For CHANGHE, For CHRYSLER, For CITROEN, For CMC, For DAEWOO, For DAIHATSU, For DEMO, For DFXK, For DR ECUAID, For EOBD2, For FERRARI, For FIAT, For FLYER, For FUTIAN, For GAZ, For GM, For HAFEI, For HMAZDA, For HONDA, For HUACHEN, For HYUNDAI, For IKCO, For INDIAN MAHINDRA, For INDIAN MARUTI, For INDIAN TATA, For ISUZU, For IVECO, For IZH, For JACTY,For JIAO, For JINLONG, For JOYLONG, For JPISUZU, For KIA, For LANDROVER, For LIFAN, For LIUWEI_TY, For LUXGEN, For MAHINDRA, For MALAYSIA PERODUA, For MALAYSIA PROTON, For MARUTI, For MASERATI, For MAXUS, For MAZDA, For MITSUBISHI, For MVM, For NISSAN, For OPEL, For PAZ, For PERODUA, For PEUGEOT, For PORSCHE, For PROTON, For QIRUI_TY, For QOROS, For RENAULT, For RESETADBLUE, For RESETAFS, For RESETAIRBAG, For RESETAIRFUEL, For RESETBLEED, For RESETBMS, For RESETBOX , For RESETBRAKE, For RESETCOOLANT, For RESETDPF, For RESETEGR, For RESETETS, For RESETGEAR, For RESETIMMO, For RESETINJEC, For RESETLANGUAGE, For RESETNOXSENSOR, For RESETODO, For RESETOIL, For RESETSAS, For RESETSEAT, For RESETSTOPSTART, For RESETSUN, For RESETSUS, For RESETTPMS, For RESETTRANSPORT, For RESETTYRE, For RESETWINDOW, For ROVER, For SAAB, For SAICMG, For SAIPA, For SAMSUNG, For SEAT, For SEAZ, For SGM, For SKODA, For SMART, For SPARK_TY, For SPRINTER, For SSANGYONG, For SUBARU, For SUZUKI, For TATA, For TOYOTA, For TPMS, For TRUMPCHI, For UAZ, For USAFORD, For VAZ, For VOLVO, For VW, For WEILI, For XIALI, For XINKAI, For ZAZ, For ZHONGSHUN, For ZHONGTAI, For ZHONGXING

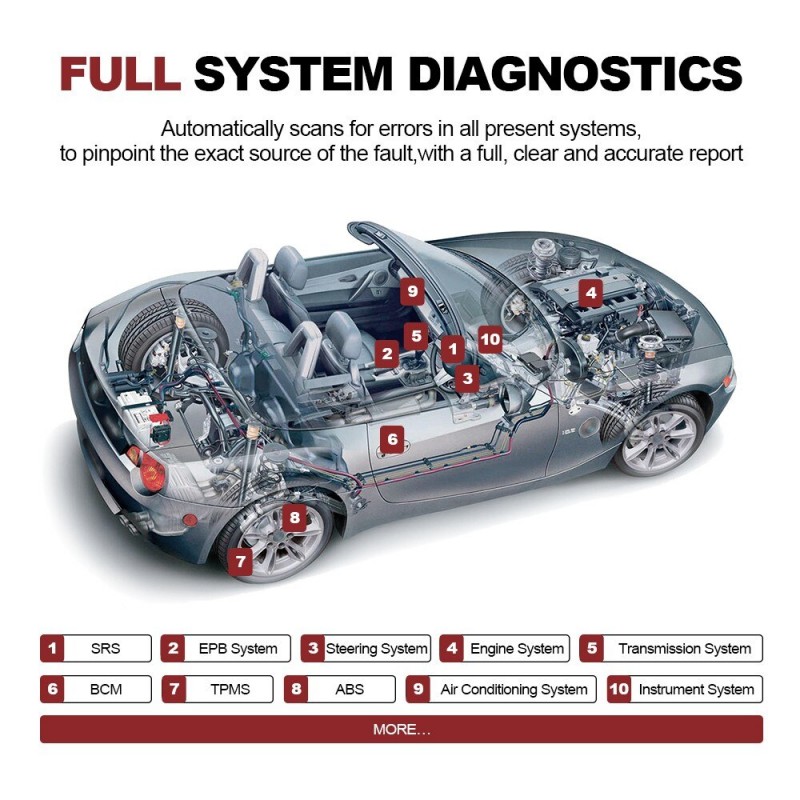

Support Full system diagnostic
Engines/Auto Transmission/Airbags/Immobilizer/Key Coding/ABS/Cruise Control/Instruments/ Self Leveling Suspension systems/Seats/Doors/Gateway/Steering Angle/Air Suspension/Body Systems/Electronic Power Steering & Motor Assisted/Power Steering/Tyre Pressure/Rain Sensors/4WD System/Stabilizer/Intelligent Parking Assist/Door Motors/Audio Systems/Air Conditioning/Tiptronic/Anti Theft/Soft Top/Headlamp Leveling/Central Locking/Automatic Clutch/ DPF Reset/Electric Windows/Plip Programming/Heated Rear Window/Xenon Headlights/Wash Wipe/Fuel Burning Heater/Transfer Box/Seat Memory/Oil Life Service Reset/Sliding Doors/Electronic Throttle/Navigation System/Rollover Sensor/Cruise Control/ Multi Function Steering Wheel/Aux Heating/Electronic Parking Brake/Clutch Electronics etc.( Great for car repair shops and mechanics to improve business)
Support 28 Service Functions
1. Oil Reset The lightening of the car maintenance light indicates that the vehicle needs maintenance.Reset the mileage or driving time to zero after the maintenance, so the maintenance light will go out and the system will start a new maintenance cycle. 2. Elec.Throttle Adaption Elec. Throttle Adaption is to utilize the car decoder to initialize the throttle actuator so that the learning value of the ECU returns to the initial state. 3.Steering Angle Reset To reset the steering angle, first find the relative zero point position for the car to drive in straight line.Taking this position as reference,the ECU can calculate the accurate angle for left and right steering. 4. Battery Matching This function enables you to perform a resetting operation on the monitoring unit of vehicle battery, in which the original low battery fault information will be cleared and battery matching will be done. 5. ABS Bleeding When the ABS contains air, the ABS bleeding function must be performed to bleed the brake system to restore ABS brake sensitivity. 6.Break-pad Reset lf the brake pad wears the brake pad sense line, the brake pad sense line sends a signal sense line to the on-board computer to replace the brake pad.After replacing the brake pad, you must reset the brake pad.Otherwise, the car alarms. 7.DPF Regeneration DPF regeneration is used to clear PM(Particulate Matter) from the DPF filter through continuous combustion oxidation mode (such as high temperature heating combustion, fuel additive or catalyst reduce PM ignition combustion) to stabilize the filter performance. 8.Gear Learning After the engine ECu, crankshaft position sensor,or crankshaft flywheel is replaced, or the DTC 'gear not learned' is present, gear learning must be performed. 9. IMMO Service To prevent the car being used by unauthorized keys, the anti-theft key matching function must be performed so that the immobilizer control system on the car identifies and authorizes remote control keys to normally use the car. 10. Injector Coding Write injector actual code or rewrite code in the ECU to the injector code of the corresponding cylinder so as to more accurately control or correct cylinder injection quantity. 11.TPMS Reset Note:Cooperate with wireless tire pressure diagnosis tool to realize TPMS activation, programming and learning functions 12. Suspension Matching This function can adjust the height of the body. When replacing the body height sensor in the air sus pension system, or control module or when the vehicle level is incorrect, you need to perform thisfunction to adjust the body height sensor for level calibration. 13. AFS Reset This feature is used to initialize the adaptive headlamp system. 14.A/T Learning This function can complete the gearbox self-learning to improve gear shifting quality. 15.Sunroof Initialization This function can set the sunroof lock off, closed when it rains,sliding /tilting sunroof memory function,temperature threshold outside the car etc. 16. EGR Adaption This function is used to learn the EGR valve after it is cleaned or replaced. 17. ODO Reset ODO reset is to copy, write, or rewrite the value of kilometers in the chip of odometer by using a car diagnostic computer and data cable, so that the odometer shows the actual 18. Airbag Reset This function resets the airbag data to clear the airbag collision fault indicator. 19. Transport Mode ln order to reduce power consumption, the following functions may be disabled, including limiting the vehicle speed, not waking up the door opening network, and disabling the remote control key, etc.At this time, the transport mode needs to be deactivated to restore the vehicle to normal. 20. A/F Reset This function is applied to set or learn Air/Fuel ratio parameters. 21. Stop/Start Reset This function is used to open or close the automatic start-stop function via setting the hidden function in ECU(provided that the vehicle has a hidden function and supported by hardware). 22. NOx Sensor Reset NOx sensor is a sensor used to detect the content of nitrogen oxides (NOx) in engine exhaust. lf theNOx fault is re-initialized and the NOx catalytic converter is replaced, it is necessary to reset the catalytic converter learned value stored in the engine Ecu. 23. AdBlue Reset (Diesel Engine Exhaust Gas Filter) After the diesel exhaust treatment fluid (car urea) is replaced or filled up, urea reset operation is required. 24.Seat Calibration This function is applied to match the seats with memory function that are replaced and repaired. 25.Coolant Bleeding Use this function to activate the electronic water pump before venting the cooling system. 26.Tyre Reset This function is used to set the size parameters of the modified or replaced tire. 27.Windows Calibration This feature is designed to perform door window matching to recover ECU initial memory, and recover the automatic ascending and descending function of power window. 28. Language Change This function is used to change the system language of the vehicle central control panel.
Support Modular expansion
Support 8 optional modules:printer, work light, videoscope, battery tester, scope box, thermal imager, moudledock, wireless TPMStool （note: you can buy those model on ThinkStore）

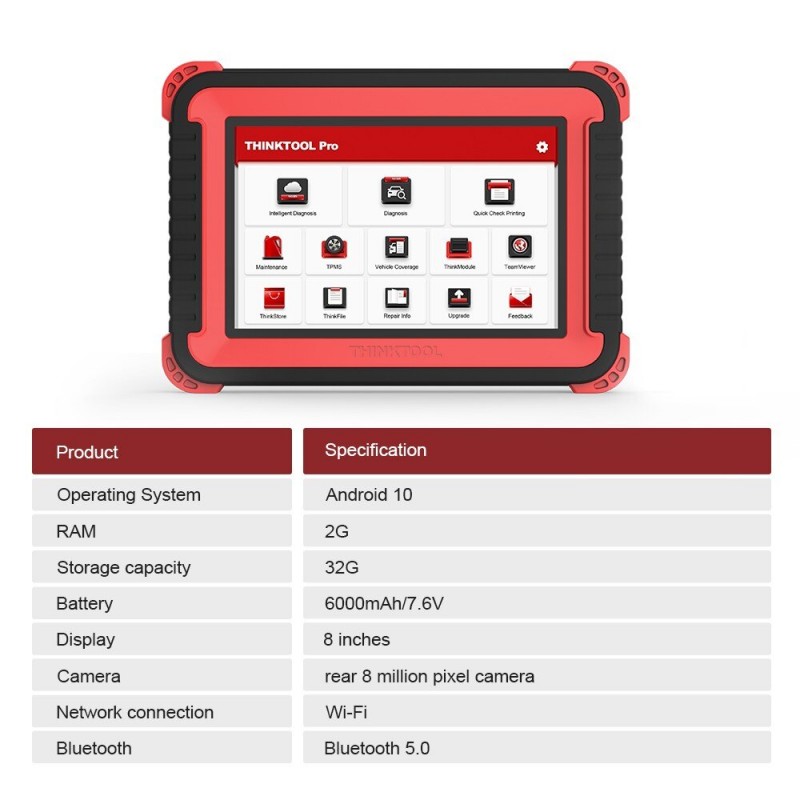

High-end hardware configuration
"Operating System: Android 10 Camera:Rear camera 8.0MP Memory:2G Network:Wi-Fi, WL AN 802. 11b/g/n Storage:32G Bluetooth: Bluetooth 5.0 Battery: 6000mAh/7.6V Working Temperature: 0°C ~ 50°C Screen: 8 inches Storage Temperature:-20°C ~ 60°C"
2 Year free. After 2 years $399/Year. But if you don't update it that you still can use all functions. But the new functions and new car softwares useless if you not update
