Launch X-431 PAD VII PAD 7 Plus GIII X-Prog 3 Support Key & Online Coding Programming and ADAS Calibration Ship from UK/EU /US

Free Delivery

$3,250.00 $4,999.00

    Looking for help? or Get More Discount
    Please contact Whatsapp: WhatsApp:+13399708796
  • Brand: Launch
  • Product Code: SP371+SK368
  • Availability: In Stock

Tags: Launch PAD VII, Launch PAD 7, X431 pad vii, x431 pad 7, pad7, pad vii, Xprog3, X-prog3, Launch X-prog3, GIII, GIII Xprog3, GIII X-Prog3

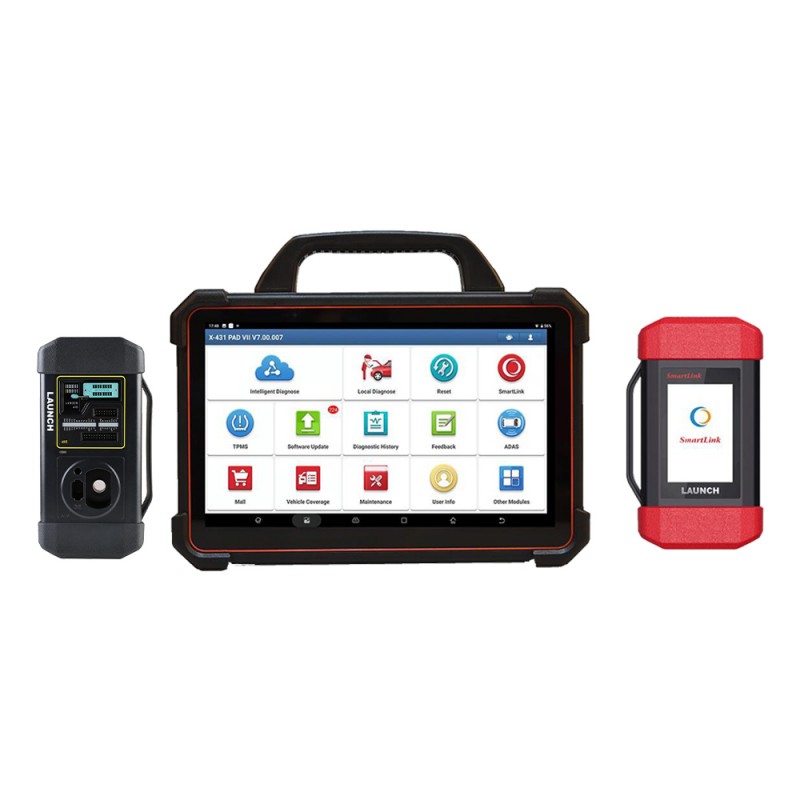

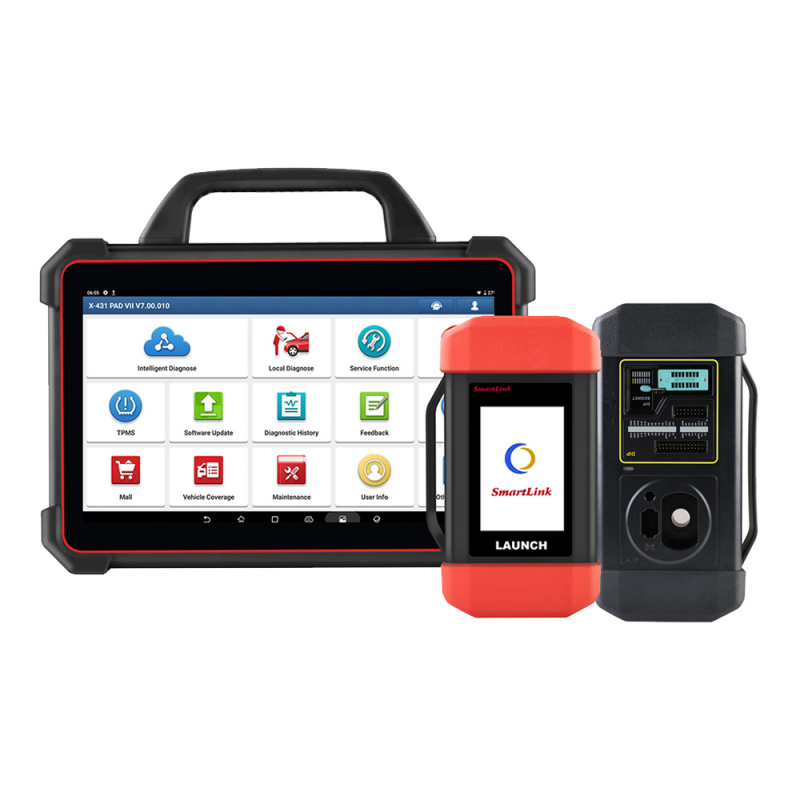

Launch X-431 PAD VII PAD 7 Plus GIII X-Prog 3 Full System Diagnostic Tool Support Key Programming/ Online Coding Programming and ADAS Calibration

Whatsapp:+13399708796
Email: service@launch-x431.net


Launch-X-431-PAD-VII-PAD-7-Plus-GIII-X-Prog-3-Support-Key-Online-Coding-Programming-and-ADAS-Calibration-Ship-from-UKEU-SP371SK368


Highlights:

1. With 1 Years Free Update Online
2. This is Global Version Without IP Limitation
3. Realtime Remote Diagnosis Function via WiFi
4. Support Commercial Vehicle and Passenger Car Diagnose, Support J2534, CAN FD, DoIP.
5. Multi-Language Supported: English, French, Spanish, German, Russian, Korean, Japanese, Portuguese, Italian, Polish, Dutch, Swedish, Chinese
6. Full System Vehicle Coverage for U.S., Asian and European markets over 110 brands, which is continually updated
7. Special Functions Supported:
 Injector, Reset Brake Bleed, Reset TPMS, Electronic Throttle Relearn, Reset DPF, Reset SAS, Reset Oil, Reset Brake, Reset BMS

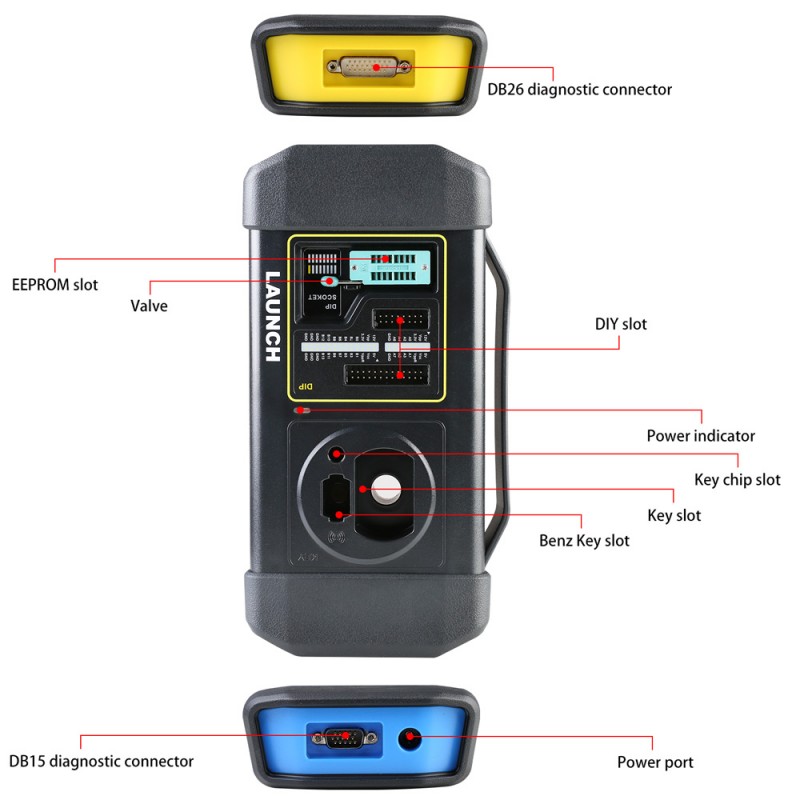

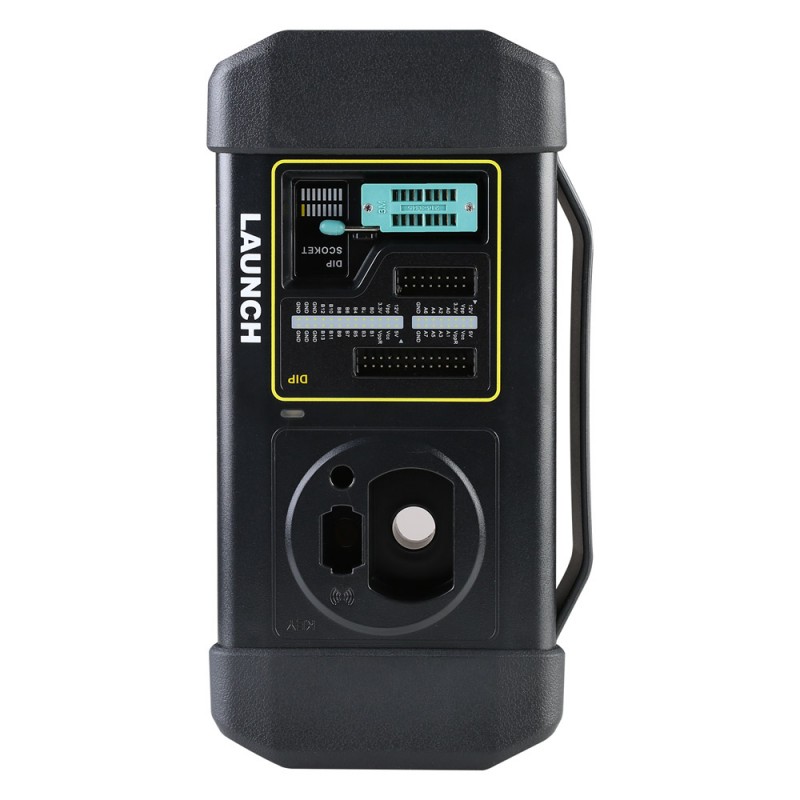

8. With the help of GIII X-Prog3, it enables read/write keys, Anti-theft type identification, Remote control matching, Key chip reading & matching, anti-theft password reading and anti-theft component replacement.
9. Support Online Coding and Programming to Year 2021: BMW, Mercedes, VW, Audi, Seat, Skoda, Porsche, Nissan, Infiniti, Subaru. (Can't perform in United States, Canada and Spain)

Launch-X-431-PAD-VII-PAD-7-Plus-GIII-X-Prog-3-Support-Key-Online-Coding-Programming-and-ADAS-Calibration-Ship-from-UKEU-SP371SK368

Description:

Launch Tech X-431 PAD VII Diagnostic Tool features a 13.3"  touchscreen, 32 service functions, and Smartlink remote diagnosis. The outer shell is designed to withstand workshop hazards such as water and dust damage and is in compliance with IP65. The X-431 PAD VII uses a high-capacity and high power battery to ensure a longer battery life with a shorter charging time. The tool offers topology mapping and a new module 'MALL' for users to expand and upgrade the tool with more diagnosis software. The X-431 PAD VII supports ADAS calibration and eight extended modules such as videoscope, oscilloscope, sensor box, TPMS tools, key immobilizer, and battery tester.

X-431 PAD VII is a high-end comprehensive diagnostic tool with charging base newly developed on the basis of Android 9.0. It supports dual 2.4GHz &5GHz Wi-Fi communication. In addition to supporting the functions of pad v products, it mainly features 13.3inch high-definition display, 8 + 256 storage space, especially with SmartLink C, which can support SmartLink remote diagnosis.

Superior Hardware Make Diagnosis Faster Than Ever

X-431 PAD VII is an unexpected high-end diagnostic, comes with a 13.3 inch large touch screen, 32 service functions and Smartlink remote diagnosis. Equipped with the 2.0GHz Octa-core optimized chipset, Android 9.0 operating system, 8G memory and 256G large storagememories, X- 431 PAD VII makes your intelligent diagnosis faster than ever.  The precision-machined outer shell is designed to work against workshop hazards such as water and dust damage and in compliance with IP65.
The X-431 PAD VII uses a high-capacity (about 19,000 mAh) and high power battery to ensure a longer battery life but a shorter charging time. Moreover, X-431 PAD VII improves the connection between scanner and VCI into ‘Dual WiFi' connectivity, which allows the VCI to maintain faster and stable connection during diagnostics.

Launch-X-431-PAD-VII-PAD-7-Plus-GIII-X-Prog-3-Support-Key-Online-Coding-Programming-and-ADAS-Calibration-Ship-from-UKEU-SP371SK368

Launch X-431 PAD VII Features:

1. Real-time voltage display helps technician to monitor the voltage condition of vehicle during the diagnosis
2. Topology mapping gives a visual checking on DTCs and all systems communication status
3. Support automotive communication protocols CAN/CANFD/DoIP and automotive communication standards J2534/D-PDU/RP1210
4. Auto-detects the communications protocol of the vehicle and assist to check automotive OBDII port pin damaged or not
5. Intelligent diagnostic enable identify VIN automatically and access system quickly
6. Guided function for VW and AUDI
7. Optional ADAS calibration function increases more revenue
8. Advanced coding and programming function
9. An extended solutio to support TPMS service
10. 2.4GHz & 5GHz dual band communication ensures quick and stable connection
11. Empower technician to diagnose light, medium & heavy duty vehicles with Smarlink C
12. The basic functions include read & clear DTC, remote diagnosis, Bi-directional control, live data graph, wireless software update etc.
13. Build-in repair information and training video modules help to track and fix issue fast.

Launch-X-431-PAD-VII-PAD-7-Plus-GIII-X-Prog-3-Support-Key-Online-Coding-Programming-and-ADAS-Calibration-Ship-from-UKEU-SP371SK368

Accurate ADAS Calibration functions

Advanced Driver Assistance System (ADAS) is an electronic component in a vehicle, including various safety functions of the vehicle, such as automatic emergency braking (AEB), lane departure warning (LDW),lane keeping assist, blind spot elimination, night vision camera and Adaptive lighting. (NOTE: Need to be purchased separately)

Launch-X-431-PAD-VII-PAD-7-Plus-GIII-X-Prog-3-Support-Key-Online-Coding-Programming-and-ADAS-Calibration-Ship-from-UKEU-SP371SK368

Functions:

1. Check the DTCs and all systems communication status visually by topology module mapping function.
2. Auto-detects the communications protocol of the vehicle uses, assist to check OBDII connector pin damaged or not.
3. Check the DTCs and all systems communication status visually by topology module mapping function.
4. Powerful diagnostic functions (intelligent diagnosis, remote diagnosis, read DTC, clear DTC, read data stream, actuation test), accurate diagnostic data, and abundant special functions.
5. Display I/M Readiness Status.
6. Read data stream: Support diverse data stream display modes and user-defined standard data stream.
7. Local diagnose: When the intelligent diagnosis is not available in an environment without network, choose traditional diagnosis. Select the vehicle make and model manually to perform the vehicle detection.

Powerful Special Functions:

Component Replacement, Cylinder Compression Test, Injector Cut Out Test, DPF Regeneration, Communicates with ABS & Transmissions from Bendix, Wabco and Allison, Tech to Tech remote communication function

The powerful Smartlink C VCI powers the diagnostic to a new level. Users are available to perform remote diagnosis without being on-site and
the limitation of diagnostic functions, tools and vehicle types.
It is able to assist technician to identify the OBDII port pin automatically and display the real-time voltage for voltage condition
monitoring during live diagnostics.

32 Service Functions:

Service Lamp Reset
Electronic Throttle
Brake Reset
Immobilizer Reset
Battery Reset
Injector Coding
SAS Reset
TPMS Reset
ABS Bleeding
Gear Learning
DPF Regeneration
Gearbox Reset
Headlamp Reset
Sunroof Initialization
SUS Reset
EGR Adaption
A/F Reset
AdBlue Reset
Nox Sensor Reset
Stop/Start settings
Transport Mode
Coolant Bleed
Windows Calibrations
Seat Calibrations
Tyre Reset
Language Change

Launch-X-431-PAD-VII-PAD-7-Plus-GIII-X-Prog-3-Support-Key-Online-Coding-Programming-and-ADAS-Calibration-Ship-from-UKEU-SP371SK368
Vehicle Coverage:

Passenger Vehicles:

1. Australian:  AUST Holden, AUST Ford
2. Asian: Toyota/ Lexus, Honda/ Acura, Mazda, Subaru, Nissan/ Infiniti, Mitsubishi, Hyundai, Isuzu, Daihatsu, KIA, Daewoo, Suzuki, Proton, Tata, Mahindra, Ssangyong, Perodua, Maruti
3. European: Audi, Mercedes/ Maybach, BMW/ MINI/ Rolls Royce, VW/ Bentley/ Bugatti, Opel/ Vauxhall, Peugeot, Citroen, Volvo, Sprinter, Renault/ Dacia, Fiat/ Romeo/ Abarth/ Lancia, Rover, Landrover, Saab, Seat, Skoda, Smart, Maserati, Ferrari, Arston Martin, Porsche, Jaguar
4. USA: USA Ford/ Lincoln, GM/ Buick/ Cadillac/ Chevrolet, Chrysler/ Dodge/ Jeep
5. Chinese: Changcheng (Great Wall), Geely, Qirui_TY(Cherry), Futian, Changan, Changhe, Haifei ….etc.
6. Special: Immobilizer/ Key, Injector, Reset Brake Bleed, Reset TPMS, Electronic Throttle Relearn, Reset DPF, Reset SAS, Reset Oil, Reset Brake, Reset BMS
7. Others: EOBD, Demo

Heavy Duty Vehicles (Need to Pay Heavy Duty License and Adpater Set):

Nissan (Diesel)
Mitsubishi (Diesel)
USA Ford Diesel, Kenworth
Astra, Benz Heavy Duty,  Bosch Diesel, China Heavy Duty, Cummins Heavy Duty, DAF, Delphi Diesel
Denso Diesel, FAW Liberation, Foton Auman, FUSO, Hino, Hyundai Heavy Duty, Isuzu Heavy Duty
Iveco Heavy Duty, JAC Heavy Duty, Mack , MAN , OBD Heavy Duty, Scania, Shangchai Diesel, Volvo Heavy Duty
WP Diesel, Airbus, Allison Transmission Box, Ashok Rejlander, Bendix ABS, Caterpillar Heavy Duty
Chai Heavy Vehicle, Chaoyang Diesel, Construction Machinery, CREDO Heavy Vechicle, Detroit Engine
Dongfeng Commercial Vehicle, Dongfeng Yufeng, Doosan Engine, Freightliner Heavy Duty Truck
Full Diesel Diagnosis Software, Haldex ABS Heavy Duty, HD_ABS System, HD_GoldenDragon, HD_International
HD_Kinglong, HD_Maxxforce, HD_Tata, HD_Western_Star, Heavy Truck Presentation Software
IRISBUS HD, IRIZAR HD, NEOPLAN HD, Peter HD, Renault HD, SETRA HD, Stannic Bavin, Sterling HD
Sunlong Bus, Sunwin Bus, UD Trucks 2F Nissan Diesel, WABCO ABS, Yang Chai Engine

Smartlink C VCI

Smartlink C is a new generation intelligent diagnostic box with Linux system independently developed by Launch, which supports multiple communication modes (USB, BT, WIFI) and multiple diagnostic protocols. It can be used alone as a remote diagnosis box for SmartLink remote diagnosis, or as a pass-thru tool to connect with OEM software.

* Support D-PDU / J2534 / RP1210 diagnostic standard, and cover passenger cars and commercial vehicles at the same time
* Support the latest diagnosis protocol of CAN/DOIP / CAN FD
* Support 2.4G/5G dual band
* Support online upgrade

In the SmartLink ecology system, if a technician (SmartLink C) does not have time to puzzle through a touch vehicle problem, he can seek a trusted second opinion or additional expertise on various vehicle issues from remote master technicians or repair shops (SmartLink B). SmartLink B enables the shop owner to greatly increase customer's retention and boost shop revenue by providing the professional technical assistance service.
It mainly consists of the following parts:

Launch-X-431-PAD-VII-PAD-7-Plus-GIII-X-Prog-3-Support-Key-Online-Coding-Programming-and-ADAS-Calibration-Ship-from-UKEU-SP371SK368

Launch X-431 PAD VII Specification:



X-431 PAD VII

Smartlink

Operation System

Andorid 9.0

N/A

CPU

2.0GHz Octa-core

N/A

Display

13.3' touch screen 1920*1080

3.5' touch screen  320*480

Memory

8GB

256M

Storage

256GB

8GB

Camera

Rear 13MP, Front 8MP

N/A

WiFi

Dual Band 2.4 & 5GHz

Dual Band 2.4 & 5GHz

Diagnostic Communication

WiFi

WiFi & BT & USB

Working Temperature

0℃~50℃

0℃~50℃

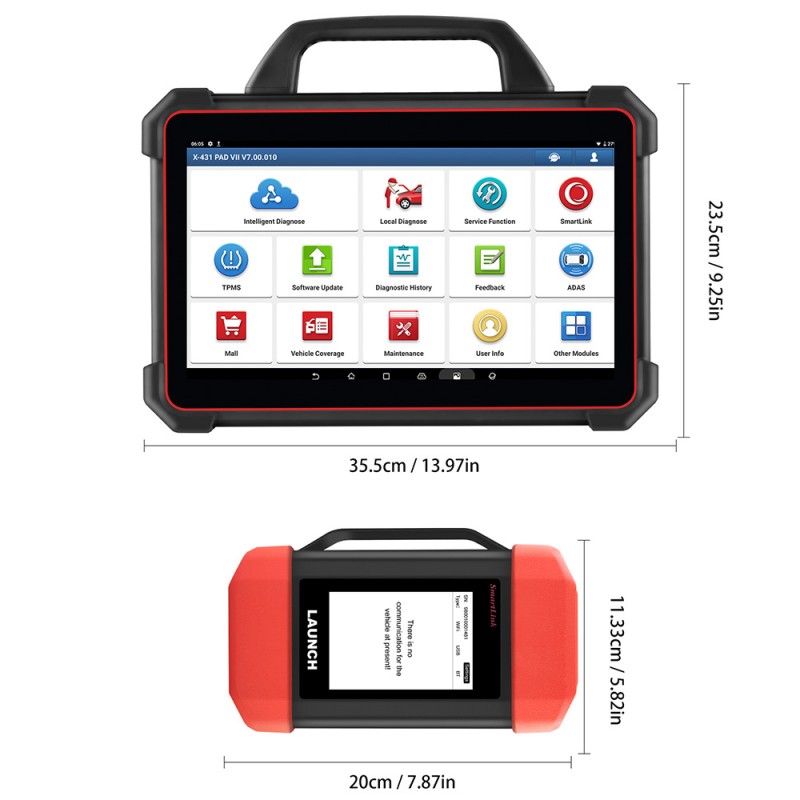

Dimension

353*236*71 mm

204*110*45 mm

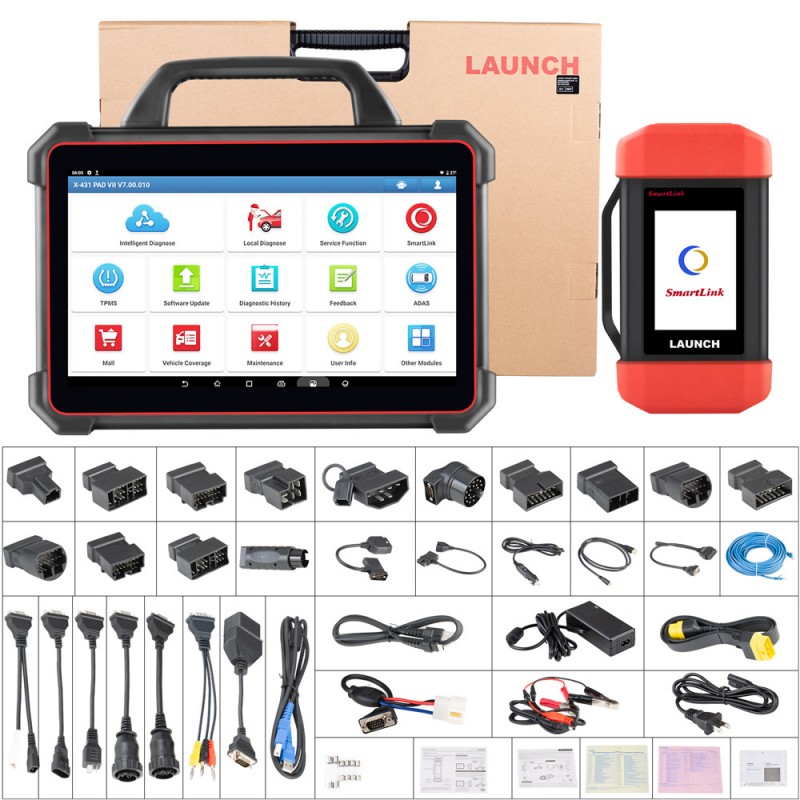

Package List:

1x X-431 PAD VIImain unit
1x Smartlink C diagnostic connector
1x Micro USB cable
1x Cigarette lighter cable
1x 5V DC out power adaptor
1x Battery clamps cable
1x OBD II extension cable
1x Non-16pin connector converting cabel
1x Password envelope
1x Non-16pin connectors set

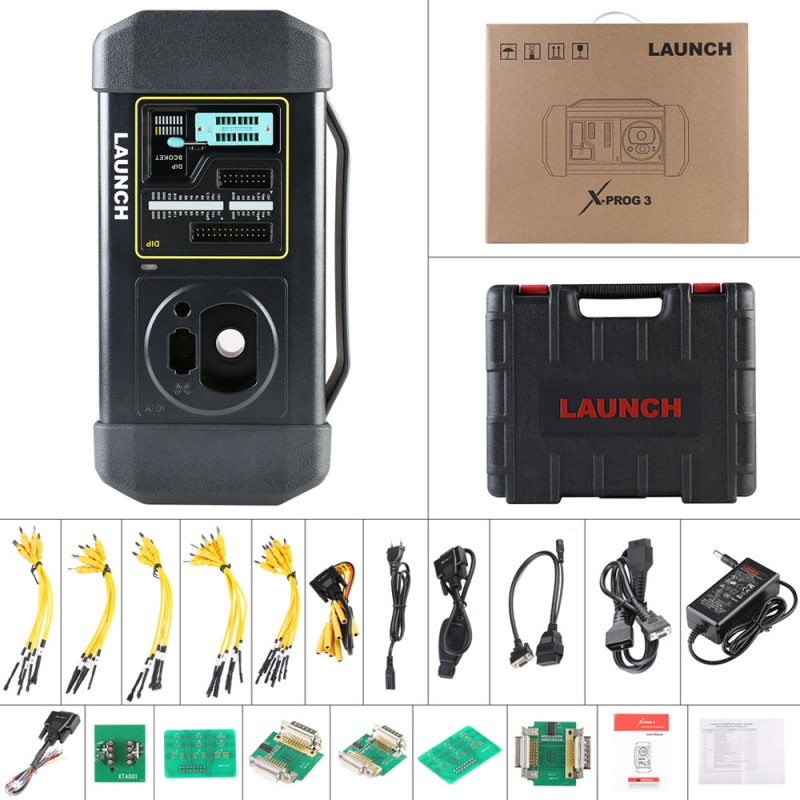

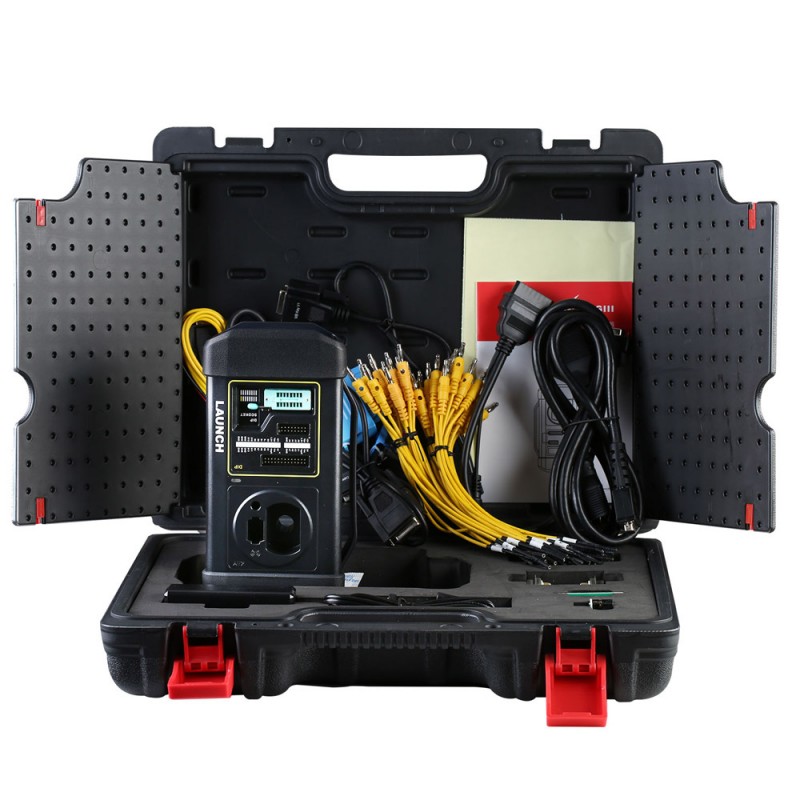

1set x Launch GIII X-Prog3
